Agilex In-System Memory Content Editor issue

Hello,

Device: Agilex AGFB014R24B2E2V

Quartus version: Windows 23.2.0

I'm able to program the device through the "In-System Memory Content Editor". The Instance Manager shows two instances of type RAM/ROM that are Read/Write. When I right click and go to "Read Data from In-System Memory" the status says "Acquisition in progress". It stays in this state for some minutes until it times out.

Any idea what I'm doing wrong?

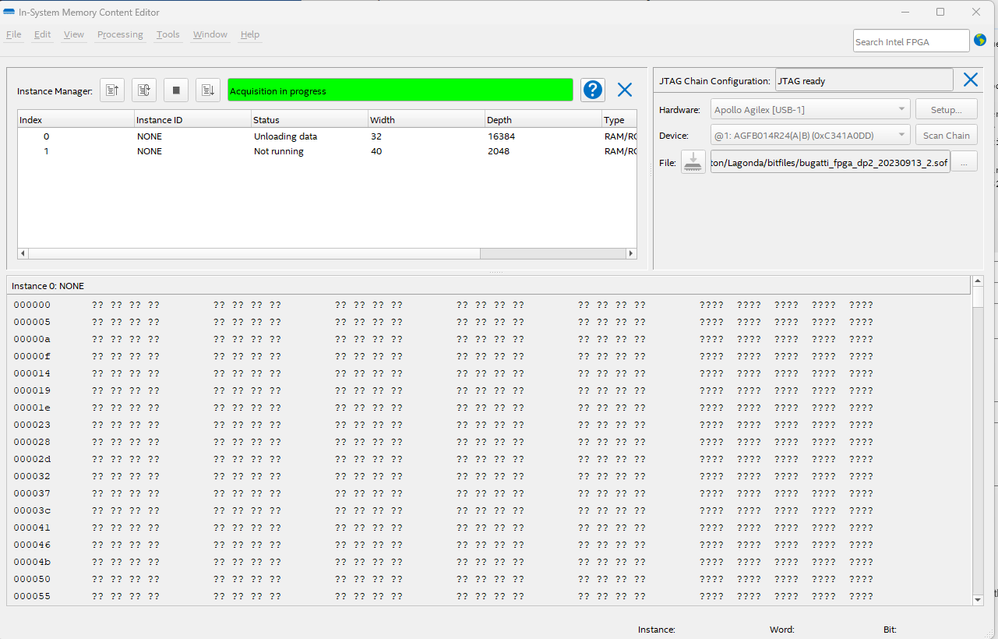

I have re-generated the ROM to make sure it should be accessible. See attached screenshot.

 

Configuration
  • IanD's avatar
    IanD
    2 years ago

    Problem is arbitration between the Quartus in-system memory editor and my logic accessing the memory. I need to halt the internal access so that Quartus has cycles to modify the memory.

    This is different than my experience on the Arria 10 devices.
