Advanced .jbc files with normal compilation flow

Question

Hi.From the Programmer Utility you can create an advanced .jbc file from a .pof file. (E.g. program configuration and user flash partitions in Max10)If you enable .jbc file generation through the Device&amp;Pin Options =&gt; Programming Files settings, the .jbc file is generated from the .sof file only and only capable of configuring a Max10.Is there a way to make an advanced .jbc file as part of the normal compilation flow?Best regardsNikolay

luis_guedes · Answer

I've found the solution on MAX10 device's "Configuration User Guide".
On section "3.2.2. Generating Third-Party Programming Files using Intel QuartusPrime Programmer" is described the additional options available on quartus_cpf to generate the JAM file with the desired property "DO_REAL_TIME_ISP".
From the user guide:"quartus_cpf -c &lt;input_pof_file&gt; &lt;output_jam/jbc_file&gt; -o background_programming=on"

shafiqy_intel · Answer

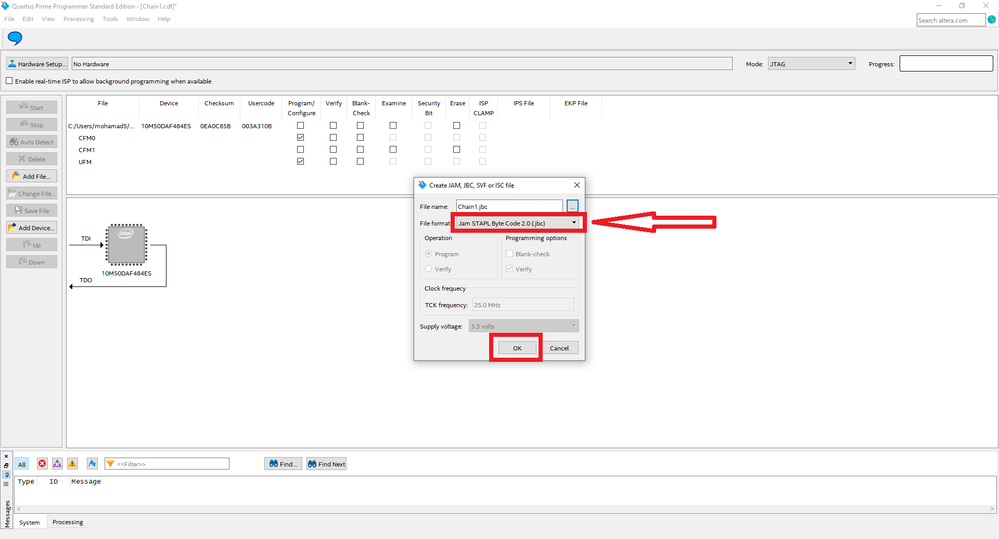

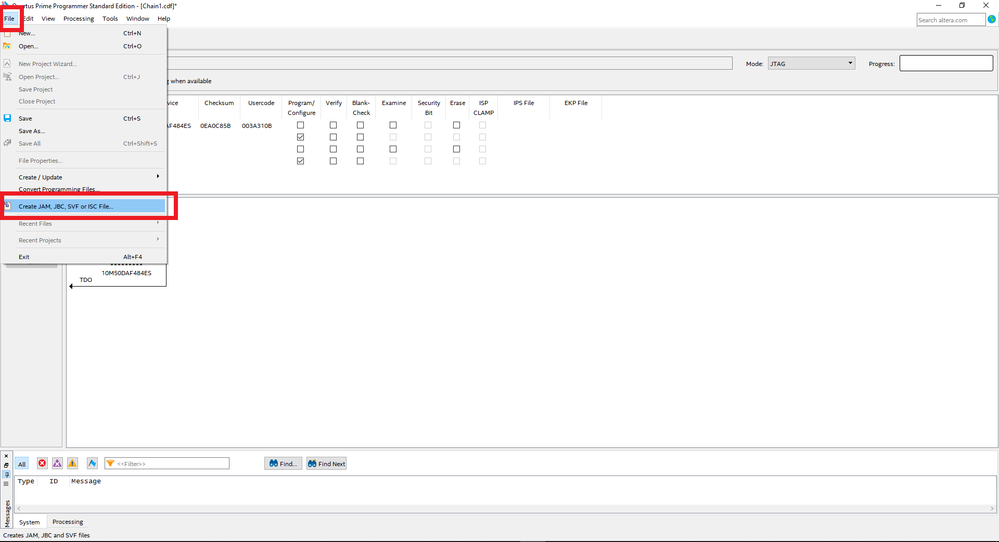

Hi Nikolay,You can create .jbc file using Quartus Programmer.Add your .pof file. Choose which CFM/UFM you want to program. (My case I choose CFM0 and UFM)Then, go to file --&gt; Create JAM, JBC, SVF and ISC file.Then, choose .jbc file.I hope this will help.Cheers.

jchri1 · Answer

This is not what Nikolay asked about. He already stated that he knows how to do it using the programmer..

The question was

"Is there a way to make an advanced .jbc file as part of the normal compilation flow?"

nikor · Answer

Hi Shafiq.There is a project assignment that can potentially be used in this case: POST_FLOW_SCRIPT_FILEhttps://www.intel.com/content/www/us/en/programmable/support/support-resources/design-examples/design-software/tcl/auto_processing.htmlThe next question is therefore:What is the tcl/shell command to make the advanced .jbc file as you described above?RegardsNikolay

shafiqy_intel · Answer

Hi Nikolay,You can use quartus_cpf command to convert input file (.sof or .pof or .cdf file) to .jbc file.Here the example the command:quartus_cpf -c  &lt;input_sof_file&gt; &lt;output_jbc_file&gt;quartus_cpf -c  &lt;input_pof_file&gt; &lt;output_jbc_file&gt;quartus_cpf -c  &lt;input_cdf_file&gt; &lt;output_jbc_file&gt;I hope this will help.Cheers
