about cyclone 10gx transceiver

Hi, recently I am trying to debug cyclone 10 gx transceivers, and the settings are as the figures above. After reseting, I first send 32'h12345678...
Core Logic
Generic Io
Programmable Logic Device
JonWay_altera's avatar
JonWay_altera
Icon for Frequent Contributor rankFrequent Contributor
3 months ago

Also, just to make sure I am clear, expected settings



ON RX SiDE

RX FIFO mode = Phase compensation
Enable block sync = ON
Enable rx_enh_blk_lock = ON
Enable rx_bitslip = optional (not needed anymore)





  • SiWu's avatar
    SiWu
    Icon for New Contributor rankNew Contributor
    3 months ago

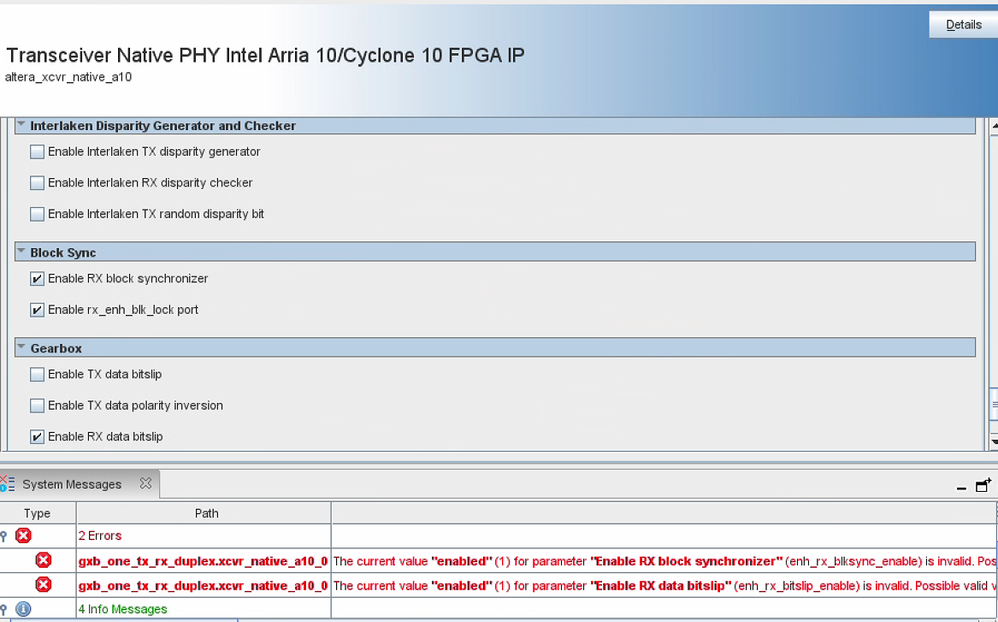

    Thank you for you reply. But unfortunately, when I enable Rx block synchronizer, error appear, as shown in the following figure.



    • Ash_R_Altera's avatar
      Ash_R_Altera
      Icon for Regular Contributor rankRegular Contributor
      2 months ago

      Hi,

      The Rx block synchronizer works when 'Enhanced PCS/PMA interface width' = 40 or 64, 'FPGA fabric / Enhanced PCS interface width' = 66 and 'Enable RX data bitslip' = Unchecked.

      Please try these settings.



      Regards

      • SiWu's avatar
        SiWu
        Icon for New Contributor rankNew Contributor
        2 months ago

        Thanks a lot for your reply. From your description, can I say that when 'Enhanced PCS/PMA interface width' = 32, there is no way to send and receive data correctly?
