Where can I find the pinouts for the Arria 10 SoC Development Kit?

I have been looking for the assignment names for pins on Arria 10 SoC Development Kit for the last two weeks.

I need to implement a Verilog project using FMCDAQ2 Evaluation board with Arria 10 SoC and I also need to add a UART IP core into the design.

The designs are already done, by which I mean the modules are all designed and ready, but the ADC part of the FMCDAQ2 does not even work somehow, and I can not even find the pin names for UART1 on the board. I can see on the board that the connector is named J10 and the chip is U13, and I have found the schematics, but I can not find the pin names for RX and TX.

Where are the pin assignment names supposed to be?

4 Replies

    • GSagl1's avatar
      GSagl1
      Icon for New Contributor rankNew Contributor
      6 years ago

      I have looked for UARTA on these, but there is none. On the board there is also a DB9 connector which is names J25 on the board itself, so I can use that as well. What I have is a usb-ttl serial converter cable with 4 pins, RX, TX, 5V and GND (here: https://core-electronics.com.au/usb-to-ttl-serial-uart-rs232-adaptor-pl2303hx.html). I just want to connect that to the FPGA and have my design send and receive data through it. Basically I just need 2 pins, a GND pin and a 5V pin. I really find those pinout files very confusing and non-explanatory.

      My device is 10AS066, I would appreciate if you could help me.

  • FawazJ_Altera's avatar
    FawazJ_Altera
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Hello,

    I am still working on this, once I get a feedback, I will let you know.

    Thank you

  • FawazJ_Altera's avatar
    FawazJ_Altera
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Hello,

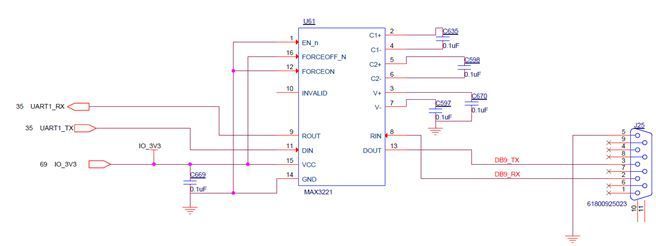

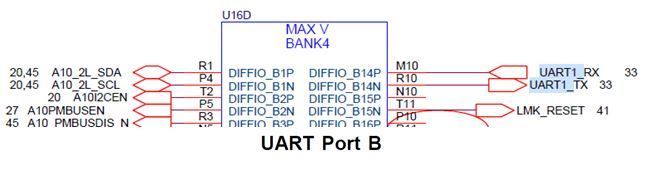

    Kindly refer to the attached document. For the DB9 connector (named J25), it is UART1 connected to MAX V pin M10 and R10.

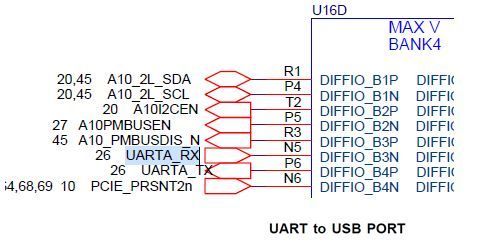

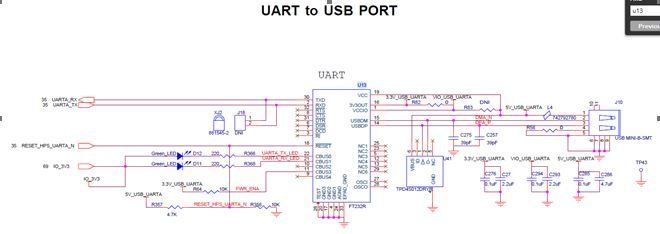

    For the USB connector (named J10), it is UARTA connected to MAX V pin N5 and P6.
