PWM control problem

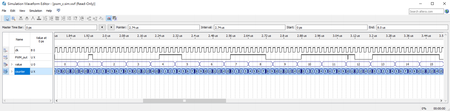

Hello guys. I'm designing a circuit of sort,and the part of PWM is having issue,don't know why... So I'll briefly describe my PWM specs; a 4-bit Input named Value, Input clock 50MHz, a single bi...
  • a_x_h_75's avatar
    a_x_h_75
    6 years ago

    Where is your test code? That is where control of 'value' comes from. Or did Quartus create that for you? Is that why you can't find where to change it?

    I recommend that you use ModelSim - a much more widely use simulation tool. Look at this guide:

    https://www.youtube.com/watch?v=qZNL1C0TwY8

    The example is similar to the code you're using. Get the test bench right and I think your code will do what you want.

    Cheers,

    Alex

a_x_h_75's avatar
a_x_h_75
Icon for Contributor rankContributor
6 years ago

Where is your test code? That is where control of 'value' comes from. Or did Quartus create that for you? Is that why you can't find where to change it?

I recommend that you use ModelSim - a much more widely use simulation tool. Look at this guide:

https://www.youtube.com/watch?v=qZNL1C0TwY8

The example is similar to the code you're using. Get the test bench right and I think your code will do what you want.

Cheers,

Alex

  • JYang101's avatar
    JYang101
    Icon for New Contributor rankNew Contributor
    6 years ago

    I forgot to update my situation,In the end...silly me...I set the wrong simulation time,as I set the simulation time between 320ns,the result was perfect.

    Thanks for the recommendation information,I'll definitely check it out.
