Problem following I2C Remote System Upgrade Example (Max 10)

Hello Everybody. I am an old timer from the Altera Forum. First timer posted on the Intel Forum.

I've been trying to follow the I2C Remote System Upgrade Example (Max 10) for a week now (see attached user guide in pdf). I have bought both the Max 10 Eval kit and Max 10 Development kit as described in the user guide. I followed the instructions to the letter:

  • P.g. 11 Programming Master Image into Max 10M50 - Done
  • P.g. 11 Programming Slave Image 1 into Max 10M08 - Done
  • P.g. 13 Programming Slave Images 1 and 2 into CFM 1 and 2 on Max 10M50 - Done
  • P.g. 16 Setup the USB-To-UART System - Done
  • P.g. 16 Send Slave Image 1 and Slave Image 2 Via UART
    • Here, I did everything up to step 3, where I need to reset the Nios processor by pressing USER_PB3 button and expect something to show up in the terminal window..😭 But I don't see anything from my terminal window

I am suspecting that my Nios processor in Max 10 wasn't up and running, but there's no indicator to tell.

I did NOT physically connect the I2C bus between these two boards yet, but I don't think that is the issue.

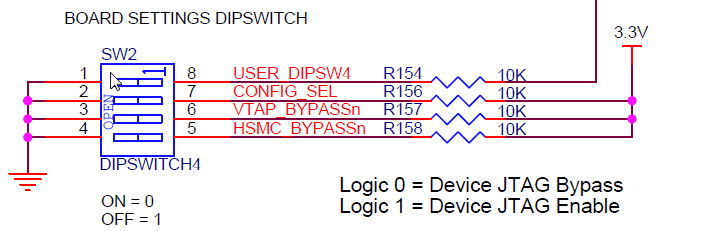

I noticed that the Max 10 Development kit has a dip switch (SW2) on the bottom side of the PCB for configuration (i.e. BOARD SETTING DIPSWITCH). Does these switch need to configure in certain configuration to follow the sample? The document didn't mention anything in that regard.

Did anyone follow this example and managed to get it working?

Thanks

Yi

11 Replies

  • zhangyi17's avatar
    zhangyi17
    Icon for New Contributor rankNew Contributor
    7 years ago

    More information. In the User guide, it specifically said "Click “Auto Detect” and select the 10M50DAES."

    The actual chip on the Max 10 Development Kit is actually a 10M50DAF484.

    So, should I choose 10M50DAES as it stated in the document or choose 10M50DA? Or it doesn't matter??

  • zhangyi17's avatar
    zhangyi17
    Icon for New Contributor rankNew Contributor
    7 years ago

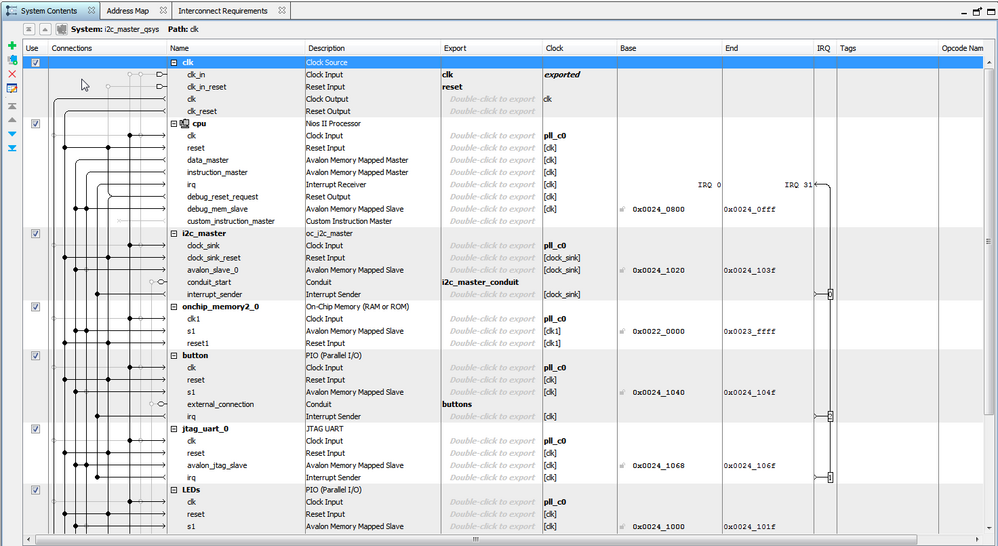

    I dig a little bit deeper by going into the Qsys Nios II processor..I don't see any port been exported for UART

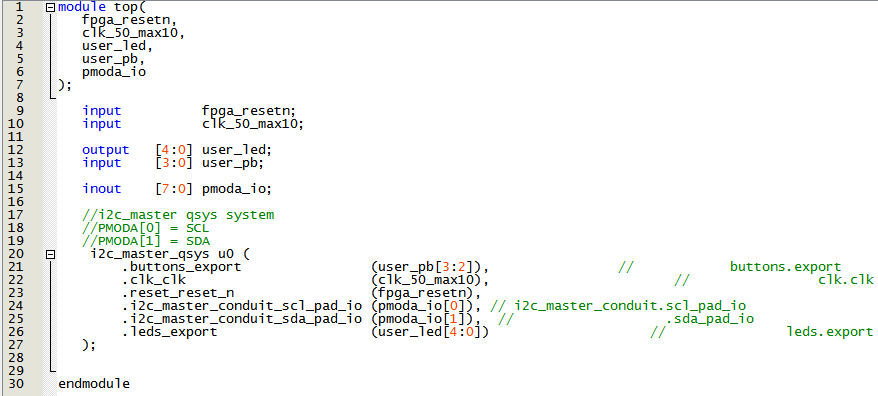

    and the top level design doesn't have any UART port either

    Could this be the problem? Anyone??

    • Ahmed_H_Intel1's avatar
      Ahmed_H_Intel1
      Icon for Frequent Contributor rankFrequent Contributor
      7 years ago

      You don't have to. BTW I see you are connecting the Jtag UART to instruction master (just connect to the Data Master of NIOS II)

      • zhangyi17's avatar
        zhangyi17
        Icon for New Contributor rankNew Contributor
        7 years ago

        The user guide (attached) for this lab explicitly connected a PC with COM port to the UART port on the Eval board via a USB/UART converter.

        In the qsys design, there is no UART at all.

        How is this suppose to work then?

  • zhangyi17's avatar
    zhangyi17
    Icon for New Contributor rankNew Contributor
    7 years ago

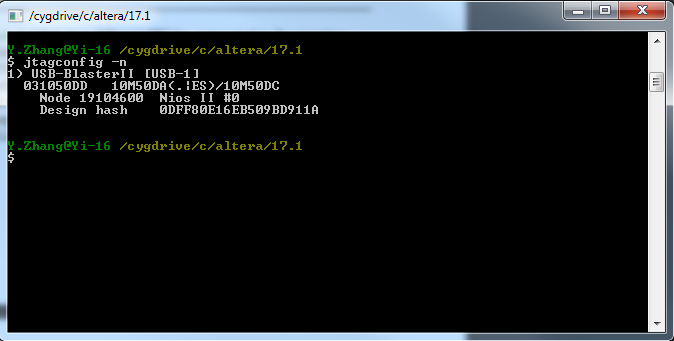

    Another thing. I issued jtagconfig –n command in Nios II Command Shell and get the following reply:

    It seems to say that I have a Nios II processor with JTAG debug module, but I don't see a node number 0x0C006Exx in the response. This seems to suggest that there's no JTAG UART component?

  • Ahmed_H_Intel1's avatar
    Ahmed_H_Intel1
    Icon for Frequent Contributor rankFrequent Contributor
    7 years ago

    You must check SW2 for example it has a pin to choose CFM0, CFM1 or CFM2 image as the first boot image in dual-image configu‐ ration. If the CONFIG_ SEL is set to low, the first boot image is CFM0 image. If CONFIG_SEL is set o high, the first boot image is CFM1 or CFM2 image. This pin is read before user mode and before the nSTATUS pin is asserted

    Please check this page:

    https://www.intel.com/content/dam/www/programmable/us/en/pdfs/products/devkits/altera/documents/10M50_evaluation_board_userguide.pdf#page=9

  • RVadl2's avatar
    RVadl2
    Icon for Occasional Contributor rankOccasional Contributor
    4 years ago

    @zhangyi17 Hi,

    I have the same issue as you. I am stuck at the black Serial port. Did you get this example working?

    Thanks in Advance.

    • zhangyi17's avatar
      zhangyi17
      Icon for New Contributor rankNew Contributor
      4 years ago

      Unfortunately no..If you figure it out, please let me know.

      • RVadl2's avatar
        RVadl2
        Icon for Occasional Contributor rankOccasional Contributor
        4 years ago

        @zhangyi17

        Hi,

        I think the issue is with the nios_firmware.pof. Its programming to QSPI Flash always fails the verify step. I think the firmware is not running at all, DO you have the design files(c files) for nios_firmware.pof
