Hi, I am writing to ask a question about the pull-up and pull-down resistors used in JTAG signals.If an FPGA has internal pull-up resistors, do I need to add these resistors? If I do need to add these resistors, do they need to be placed close to the programming port, or is there no such requirement?I would appreciate any information you can provide on this topic.Thank you for your time and consideration.✖✖✖

Hi,Yes, FvM is correct. Diodes and capacitor are more critical. The position of the resistor in your design should be fine.Regards,Aiman

JTAG PULL UP/DOWN RESISITER | Altera Community

NurAiman_M_Intel
Super Contributor
1 year ago
Hi,

Yes, FvM is correct. Diodes and capacitor are more critical. The position of the resistor in your design should be fine.

Regards,
Aiman
NurAiman_M_Intel
Super Contributor
1 year ago
Hi,

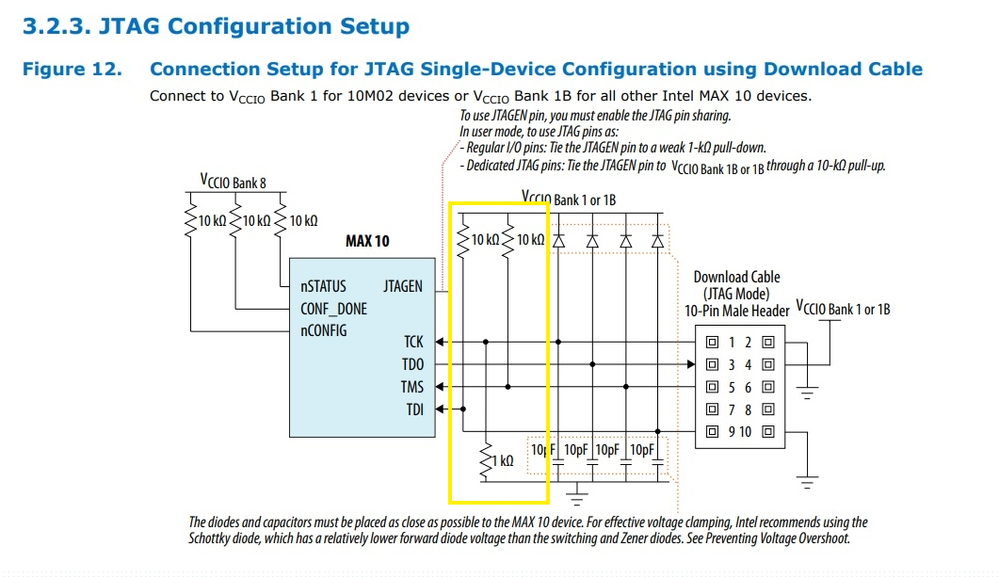

It is recommended to follow the setup in the userguide. For the resistor, it should be put close to FPGA.

Regards,
Aiman
MartinMaa
Occasional Contributor
1 year ago
Thank you for your reply.
Since my PCB is very small, only 36mmX36mm, there are some difficulties in placing the components.

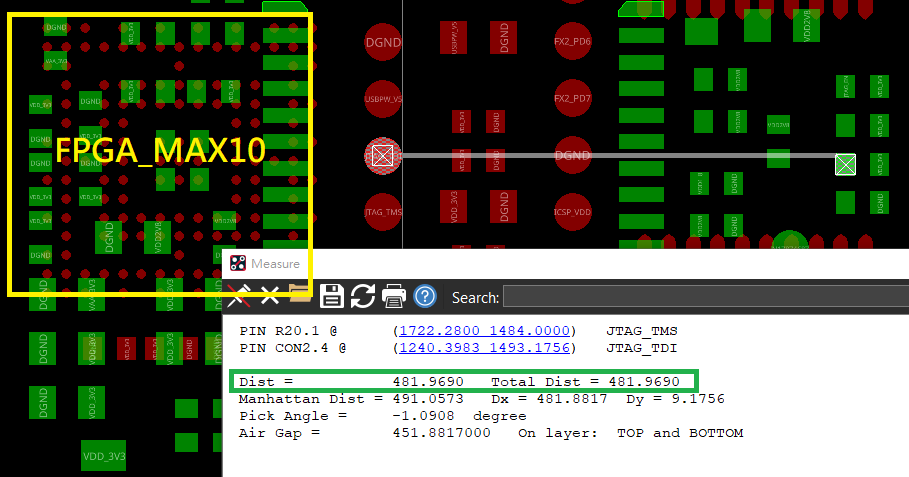

If the distance is as shown in the figure, will there be a problem? Or is there a maximum allowable length?
482mil (12mm)
- FvM
  Super Contributor
  1 year ago
  Regarding resistors, I doubt there's a strict close to FPGA requirement because resistance is large multiple of trace impedance. Position of capacitors is more critical, a few centimeters don't matter though.
NurAiman_M_Intel
Super Contributor
1 year ago
