jtag id issue

Hi all,

When I'm tyring to program Stratix10 Tx development kit, it failed with following error message:

Error(18941): Can't configure device. Expected JTAG ID code 0xC323D0DD for device 1, but found JTAG ID code 0x020A40DD. Make sure the location of the target device on the circuit board matches the device's location in the device chain in the Chain Description File (.cdf).

So I tried to check the JTAG connection, it looks okay. Could you please let me know how to handle with this issue?

Best Regards,

Junyong

Fpga Devkit

6 Replies

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    2 years ago
    Hi,

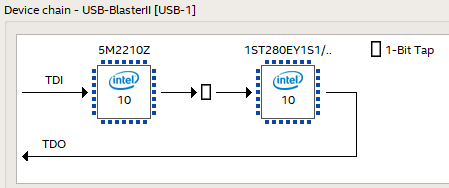

    you are apparently directing the Stratix .sof file to MAX10. As the message tells, edit chain description.

    Or modify dev board DIP switches and take MAX10 out of JTAG chain.
    • Junyong's avatar
      Junyong
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago

      Thank you FvM,

      The issue I addressed was resolved.

      Unfortunately, I have another issue during programming.

      So could you please let me know how to handle with the following issue?

      Error(18948): Error message received from device: Device is in configuration state.
      Error(18950): Device has stopped receiving configuration data

      Best Regards,

      Junyong

  • NurAiman_M_Intel's avatar
    NurAiman_M_Intel
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hi,


    Make sure the JTAG communication cable(s) are securely connected to the target system and are set to use a JTAG TCK frequency that is supported by all the devices in the JTAG chain and the target system, and the correct device is selected. Then retry the operation.


    Regards,

    Aiman


    • Junyong's avatar
      Junyong
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago

      Thank you for your reply, Aiman,

      I'm looking into "Intel® Stratix® 10 Clocking and PLL User Guide".

      Could you please let me know the above document is for what you mentioend?

      Best,

  • NurAiman_M_Intel's avatar
    NurAiman_M_Intel
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    We do not receive any response from you to the previous answer that I have provided. This thread will be transitioned to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you
