Files/Setting needed for cycloneVsoc baremetal project.

Hi,

I'm using SoM system for my baremetal project now.

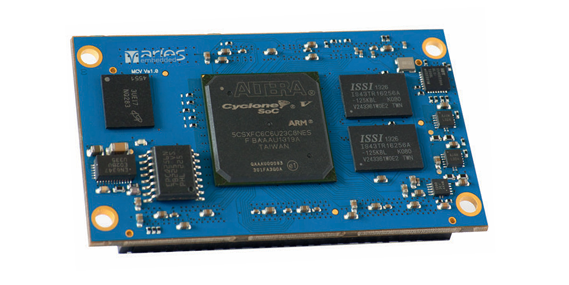

Here is the image of this board:

It has an eMMC flash as a boot option.

I don't know what is the boot flow for this device. So I assume boot form eMMC is kind of boot form SD/MMC card using cycloneVsoc dev kit.

In order to that I'm tyrying to use SPL,since preloader is no longer supportted.

what I did:

1. compile the axf file and then compile the bin file using fromelf(ARMCC tool chain)

2. compile the sof system file using Quartus Prime 22.1std

3. compile the SPL file using Uboot and cycloneVsoc defconfig to get u-boot-spl.

4. made an image from rocketboards.org for the SD card.

I read the AN709 file: baremetal for SD card.

I think what I need to do next is:

Using mkimage to add a load point and an entry address. In baremetal example helloworld, you used order like:

$(MKIMAGE) -A arm -T standalone -C none -a 0x100040 -e 0 -n "baremetal image" -d $(BIN) $(IMG)
However, what's next?
About SPL:
There is a notice "Note: spl.boot.SDMMC_NEXT_BOOT_IMAGE = 0x40000. " on AN709.
Do I need to change the spl boot image address as well?
What's the meaning of this address 0x40000?
About mkimage:
Could you explane how can I get the correct -a and -e address?
What are these addresss retaled to? sdcard address, next_boot_image address, scat address,etc.
Could you give me an example?
About SD card:
For baremetal system
What's the correct design flow next?
Which file do I need to which loacation?
Thank you for your help.
ref:
Yours
Alex
Fpga Devkit

4 Replies

  • Farabi's avatar
    Farabi
    Icon for Regular Contributor rankRegular Contributor
    1 year ago

    "We sincerely apologize for the inconvenience caused by the delay in addressing your Forum queries. Due to an unexpected back-end issue in our system, your Forum cases, along with others, did not get through as intended. As a result, we have a backlog of cases that we are currently working through one by one.

    Please be assured that we are doing everything we can to resolve this issue as quickly as possible. However, this process will take some time, and we kindly ask for your patience and understanding during this period. The cases will be attended by AE shortly.

    We appreciate your patience and understanding, and we are committed to providing you with the best support possible.

    Thank you for your understanding."


  • Jeet14's avatar
    Jeet14
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    Hi,


    As I have mentioned on the other post-https://community.intel.com/t5/FPGA-SoC-And-CPLD-Boards-And/Bootrom-debug-failed-to-find-spl-in-emmc-CycloneVsoc/m-p/1638333#M28424

    we don't have any documentation or steps for BareMetal application booting from eMMC on cyclone V.


    However, you are referring the AN709 which is based on the HWLIB GNU based examples.

    In order to run the SDcard, QSPI booting examples presented in this Boot Guide the following are required:

    • Altera® Cyclone V Development Kit, Rev D

    • Host PC running Windows 7 or newer(1)

    • Altera SoC Embedded Design Suite (SoC EDS), v14.1 installed

    • Altera Complete Design Suite (ACDS) v14.1(2)


    spl.boot.SDMMC_NEXT_BOOT_IMAGE = 0x40000. This is the location where the bare-metal application image is stored.


    Regards

    Tiwari
