Datasheet about Delay of a single Lookup Table and Clock edge Transition Time

Hi everyone, I am using Cyclone V 5CSEMA5F31C6NF device to emulate a variable delay line with timing resolution of 200ps.

To do so I may probably use fast local interconnect and LUT to mimic the tapped delay line in DLL.

This method relied heavily on global clock rising and falling time and timing model of a signle LUT. Unfortunately, I have not found information about the specific values or ranges of delay values in Cyclone V Device Handbook Volume 1.

May I ask if any people know where I can sort out this information or there is no detailed info about delay but I shall measure myself?

Thanks!

Mingqiang

4 Replies

    • cosx's avatar
      cosx
      Icon for Occasional Contributor rankOccasional Contributor

      Thank you!

  • KhaiChein_Y_Intel's avatar
    KhaiChein_Y_Intel
    Icon for Regular Contributor rankRegular Contributor

    Hi Mingqiang,

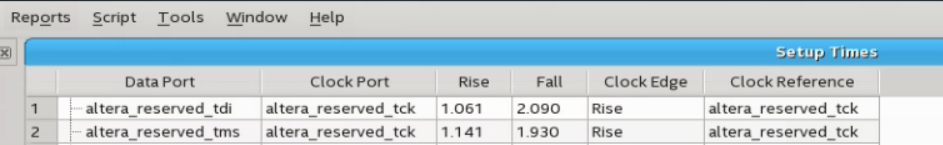

    You may see the value of rise time/fall time in Timing Analyser > Reports > Datasheet > Report Datasheet

    Example of the report:

    Thnaks

    Best regards,

    KhaiY

    • cosx's avatar
      cosx
      Icon for Occasional Contributor rankOccasional Contributor

      Hi KhaiY,

      Thank you very much!

      However, may I know if there is any data about LUT propogation delay time?

      If not, I will measure myself!

      Thanks!

      Mingqiang
