CYCLONE V FPGA POWER-UP SEQUENCE

Currently i am using the below cyclone V FPGA for my design, Part: 5CGTFD7D5F27I7N As per the CV-52001 (2023.10.18) -Volume 1: Device Interfaces and Integration The recommended power-up sequence g...
Board Debug
Farabi's avatar
Farabi
Icon for Regular Contributor rankRegular Contributor
11 months ago

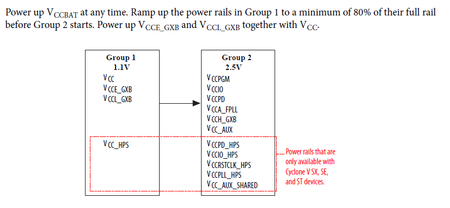

This is power sequence timing diagram:

this is tRAMP you need to follow:

regards,
Farabi

  • ANBARASU's avatar
    ANBARASU
    Icon for New Contributor rankNew Contributor
    11 months ago

    Hi Farabi,

    Thanks for your response!

    Regarding the below query, to avoid VCCPD current transient i should follow above "power sequence timing diagram (Figure 183)". Please confirm.

    As per the table 10-1 , point 33 is not clear for me, can anyone help to provide more details.

    Regards,

    Anbarasu S
