Occasional ContributorCyclone 10GX with 2 port SFP 1G test.
Hi SengKok! All issues have been resolved. This error is caused by CLK signal for GXB. My custom broad Cyclone10GX ran successful 2 port SFP 1000 Base-X and 2 port 1000 Base-T. Thank!
Regular ContributorYou can follow the AN744 TSE IP core configuration for the settings. What you need to do is basically enable the GXB interface and then hook up with a reset controller. Please refer to the altera_eth_channel.v file.
Does the PHY internal serial loopback test is passed (TEST_PHYSERIAL_LOOPBACK 0 1G 1000), if yes, which means the TSE IP configuration and connection are fine.
Next, please confirm if SMA loopback or SFP loopback is passing on the same channel. If not, please capture the following signals for debugging:
- led_an
- led_link
- pll_locked
- tse_reset
- rx_ready
- tx_ready
- rx_is_lockedtodata
- rx_is_lockedtoref

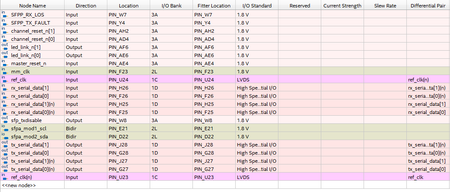

Occasional ContributorHi. SengKok_L_Intel. I have been test successful Ping from Bercut to Cyclone 10GX kit use TSE ipcore over SFP 1G module. But when I test in my custom broad have error (Can't setup Ethernet link synchronization). My broad similar DEV 10GX kit. All signal ok such as ref_clk = 125m; SFP_TX_DIS_0 =0; SFP_FALT_0 = 0 but no signal in SFP_RX0_P and SFP_RX0_N. So I think XCVR_Native in my Broad error. I try test XCVR using "Cyclone 10 GX XCVR Toolkit Reference Design v17.1.1 User Guide" on tranceiver toolkit has eror below.
