Cyclone 10GX JTAG Programming

Hi, I am using Cyclone 10GX in one of my design. When I started testing my board, JTAG was not functioning properly. I could program Cyclone10 through JTAG at 1MHz but not beyond that. I tried diffe...
KBhag3's avatar
KBhag3
Icon for New Contributor rankNew Contributor
7 years ago

Dear Anand,

When the board is powered ON with MSEL pins in AS mode: nCONFIG is continuously high & CONFIG_DONE is continuous low. nStatus is going high & low like clock signal. The board is in continuous loop as shown in the attached image (Figure141 of Handbook). Writing the configuration data to FPGA is not happening.

nStatus will become high if I load .sof file through JTAG, as expected. Also CONFIG_DONE goes high after programming.

Best regards,

Bhagavath

AnandRaj_S_Intel's avatar
AnandRaj_S_Intel
Icon for Regular Contributor rankRegular Contributor
7 years ago

​

Hi Bhagavath,

We can finally suspect the flash device.

Let me escalated this case to AE. I will get back to you on this soon.

Regards

Anand

  • KBhag3's avatar
    KBhag3
    Icon for New Contributor rankNew Contributor
    7 years ago

    Dear Anand,

    I have captured the top marking of the Micron Flash & the same is attached. Not sure if this will help.

    Do you suggest any footprint compatible alternate part? I will quickly procure few of them & try if that helps.

    Best regards,

    Bhagavath

  • KBhag3's avatar
    KBhag3
    Icon for New Contributor rankNew Contributor
    7 years ago

    Dear Anand,

    Please let me know if you have any further update regarding this issue.

    Best regards,

    Bhagavath

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    7 years ago

    ​Hi Bhagavath,

    Sorry for the inconvenience.

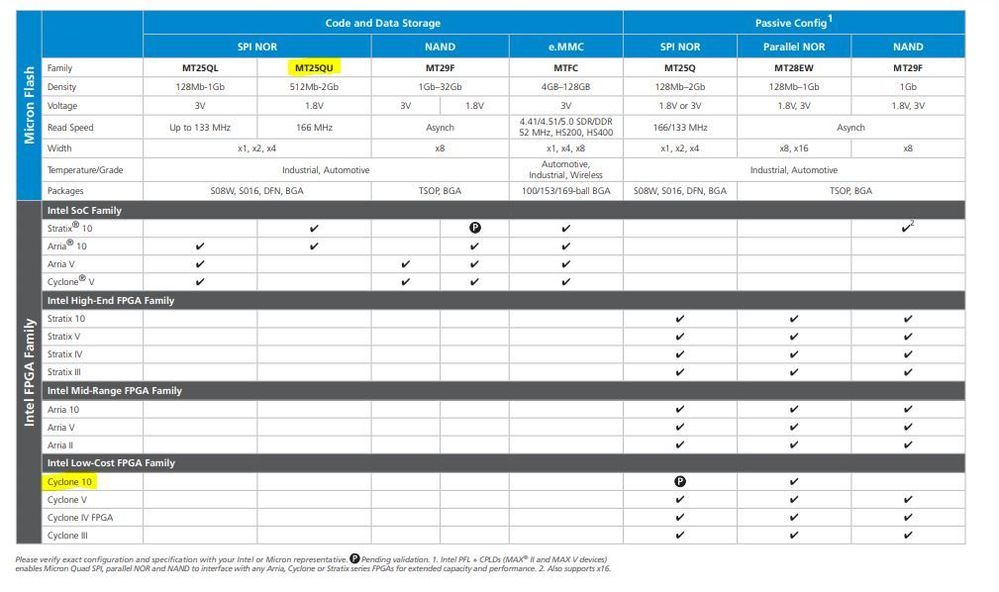

    We can see that MT25QU256ABA8ESF is only supported for Arria 10 and Stratix 10 devices.

    MT25Q(Pending validation) & MT28EW flash are supported for Cyclone 10 GX.

    1. We will be not able to use MT28EW it is parallel flash
    2. Try with MT25Q which is not been validated.

    https://www.micron.com/-/media/client/global/documents/products/other-documents/altera_compatibility_chart_flash_dram.pdf?la=en

    Regards

    Anand
