Configuration failing in AGF027 board

Hi,

We are trying to program AGF027 evaluation board with a custom sof/rbf but the image load fails with below error.

====

Info (21597): Response of CONFIG_STATUS
Device is running in configuration firmware
00006000 RESPONSE_CODE=OK, LENGTH=6
F0040000 STATE=ERR_INTERNAL_ERROR, MINOR_ERROR=BASIC_ERROR
00170400 Version
C00000B9 MSEL=AS_FAST_POR, nSTATUS=1, nCONFIG=1, VID=1, CLOCK_SOURCE=OSC_CLK_1
00000000 CONF_DONE=0, INIT_DONE=0, CVP_DONE=0, SEU_ERROR=0
00001800 Error location
00000000 Error details
Error message: Internal error.

===

As per https://www.intel.com/content/www/us/en/support/programmable/articles/000097610.html?wapkw=DEVICE_INITIALIZATION_CLOCK, QSF has below line.

set_global_assignment -name DEVICE_INITIALIZATION_CLOCK OSC_CLK_1_125MHZ

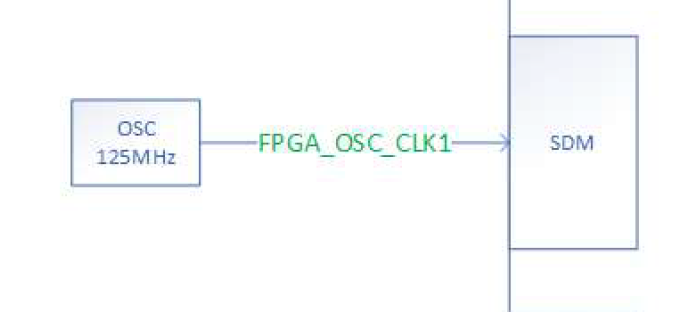

And as you can see from below board schematic screenshot, a 125MHz clock going to SDM/OSC_CLK_1.

We have not probed the clock pin on board, but do you see any issue with what we are doing?

Thanks

BPR

Board Debug

4 Replies

  • FakhrulA_altera's avatar
    FakhrulA_altera
    Icon for Regular Contributor rankRegular Contributor
    1 year ago

    Hi binupr,


    Sorry I might have missed your post. Could you change the MSEL=AS_FAST to MSEL=AS_NORMAL?


    Regards,

    Fakhrul


    • binupr's avatar
      binupr
      Icon for Occasional Contributor rankOccasional Contributor
      1 year ago

      Hi Fakhrul,

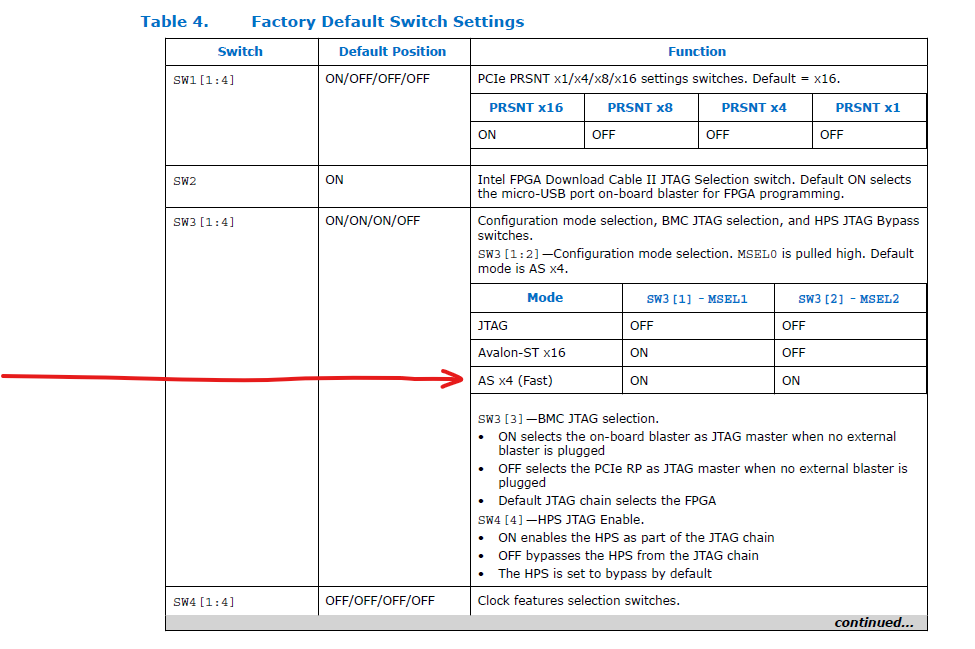

      Thank you for your reply. Looking at the AGF027 board user guide, I don't see what sets MSEL to NORMAL. See screenshot below.

      But we tried anyway by setting SW3[1] & SW3[2] in OFF/ON position and it seems to have accepted as NORMAL mode. But we are still getting configuration error.

      Info (21597): Response of CONFIG_STATUS
      Device is running in configuration firmware
      00006000 RESPONSE_CODE=OK, LENGTH=6
      F0040000 STATE=ERR_INTERNAL_ERROR, MINOR_ERROR=BASIC_ERROR
      00170400 Version
      C00000BB MSEL=AS_NORMAL_POR, nSTATUS=1, nCONFIG=1, VID=1, CLOCK_SOURCE=OSC_CLK_1
      00000000 CONF_DONE=0, INIT_DONE=0, CVP_DONE=0, SEU_ERROR=0
      00001800 Error location
      00000000 Error details
      Error message: Internal error.

      Regards

      Binu

  • FakhrulA_altera's avatar
    FakhrulA_altera
    Icon for Regular Contributor rankRegular Contributor
    1 year ago

    Hi binupr,


    My apologies, I was OOO whole week last week. May I know do you have additional board to test?

    Do you have HPS enabled in your design?

    What is you board OPN?

    Can you try to change another configuration scheme?


    Regards,

    Fakhrul



  • FakhrulA_altera's avatar
    FakhrulA_altera
    Icon for Regular Contributor rankRegular Contributor
    1 year ago

    As we do not receive any response from you to the previous questions/notification that we provided. This thread will be transitioned to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.
