Configuration failing in AGF027 board

Hi, We are trying to program AGF027 evaluation board with a custom sof/rbf but the image load fails with below error. ==== Info (21597): Response of CONFIG_STATUS Device is runnin...
Board Debug
FakhrulA_altera's avatar
FakhrulA_altera
Icon for Regular Contributor rankRegular Contributor
1 year ago

Hi binupr,


Sorry I might have missed your post. Could you change the MSEL=AS_FAST to MSEL=AS_NORMAL?


Regards,

Fakhrul


  • binupr's avatar
    binupr
    Icon for Occasional Contributor rankOccasional Contributor
    1 year ago

    Hi Fakhrul,

    Thank you for your reply. Looking at the AGF027 board user guide, I don't see what sets MSEL to NORMAL. See screenshot below.

    But we tried anyway by setting SW3[1] & SW3[2] in OFF/ON position and it seems to have accepted as NORMAL mode. But we are still getting configuration error.

    Info (21597): Response of CONFIG_STATUS
    Device is running in configuration firmware
    00006000 RESPONSE_CODE=OK, LENGTH=6
    F0040000 STATE=ERR_INTERNAL_ERROR, MINOR_ERROR=BASIC_ERROR
    00170400 Version

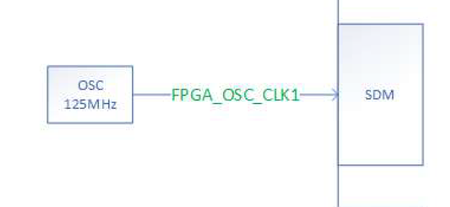

    C00000BB MSEL=AS_NORMAL_POR, nSTATUS=1, nCONFIG=1, VID=1, CLOCK_SOURCE=OSC_CLK_1
    00000000 CONF_DONE=0, INIT_DONE=0, CVP_DONE=0, SEU_ERROR=0
    00001800 Error location
    00000000 Error details
    Error message: Internal error.

    Regards

    Binu
