New ContributorCan't find schematics, sample codes, etc. about PCI Development Board, Cyclone II Edition

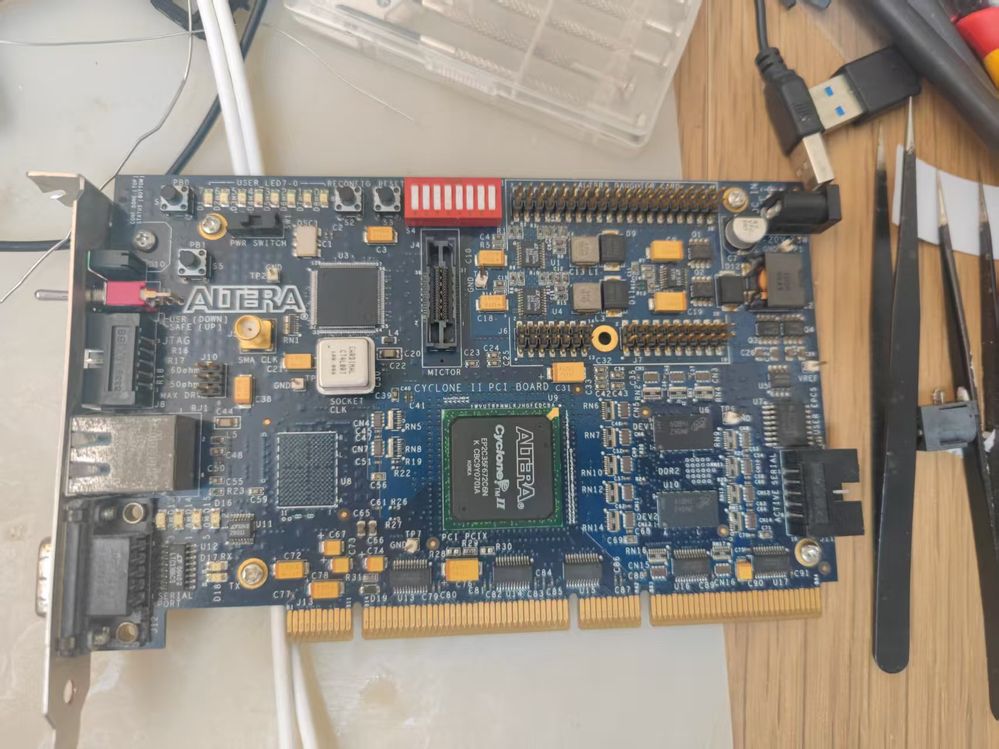

The physical picture of this development board is as follows:
However, I searched for a long time and only found some reference manuals, user manuals, etc. about it, but did not find the key schematics, demo programs, etc.
If anyone has the factory-installed DVD disc image, could you please share it with me?
Later, I downloaded a schematic from some paid forum. Although the title of the drawing was the same as that of the board, the position numbers of many components did not match.
https://drive.google.com/file/d/1kWywSIMAK-OJfcWL2GlHENNIAq8T6hfI/view?usp=sharing
For example, the U19 in this drawing is the Ethernet chip, but the actual device and the reference manual both say the Ethernet chip is U3. So I think this drawing is wrong.
Although I found information about it in the web time machine, there is only a brief introduction and no available data for download.
I hope some friend can help me, thank you very much
3 Replies
JohnT_AlteraRegular Contributor
Hi,
Attach is the schematic for your reference.
- rainhenry
Thank you very much for your reply! Your schematic is correct! It matches the development board I have. Thanks again
By the way, do you have any reference code for this board? Or any test firmware for it is also OK. I want to test whether its PCI and DDR hardware are OK. Thank you.
At the same time, if necessary, I am willing to pay you some fees
- JohnT_Altera
Unfortunately I do not have it as this is part of the CD-ROM.
