Altera Cyclone V development board FPGA problem (error code:-4)

I am working on the Altera Cyclone V Development board (revision D).

It seems that the FPGA image is not loaded after power up. I found following lines in the uboot bootlog:

reading soc_system.rbf

7007184 bytes read in 2368 ms (2.8 MiB/s)

altera_load: Failed with error code -4

My board switch and jumper settings are listed as below:

SW1 All OFF

SW2 All OFF

SW3 1:ON 2:ON 3:ON 4:ON 5:ON 6:ON

SW4 1:OFF 2:OFF 3:ON 4:ON

J5 open

J6 shorted

J7 shorted

J9 open

J13 shorted

J16 open

J26 right shorted

J27 right shorted

J28 right shorted

J29 right shorted

J30 left shorted

J31 shorted

Please help

2 Replies

  • FBuss2's avatar
    FBuss2
    Icon for New Contributor rankNew Contributor
    7 years ago

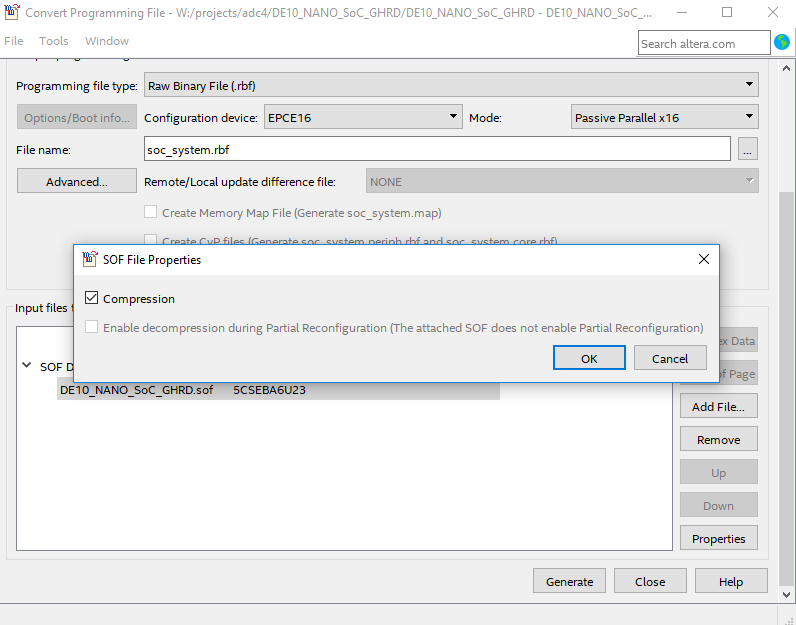

    I had the same problem. The reason was the wrong setting in the "Convert Prorgamming File" tool. When you add the SOF file, select the file, then click on "Properties" bottom right. Then click on "Compression". This is how it looks like in Quartus Prime 18.1.:

    You also need to set the "Mode" to "Passive Parallel x16". Then save the soc_system.rbf file to the FAT partition on the SD card and u-boot can load it.

    • TOoi's avatar
      TOoi
      Icon for New Contributor rankNew Contributor
      7 years ago

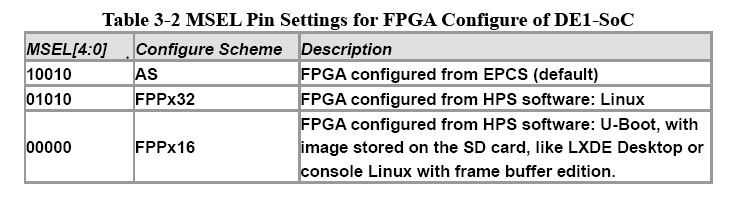

      Thanks for the solution provided @FBuss2​ . Have been searching this error code for a while. I wish to add on something, the "Mode" is set according to the MSEL pin u set on the DE1-SoC board. You can refer to the table below, the table can be found in DE1-SoC User Manual provided by Terasic, section 3.1 Settings of FPGA Configuration Mode.
