10M50DAF672I7G supports 1.0V IO Voltage or not

We are planning to use "10M50DAF672I7G" device on of the prototyping platform. We are looking for 1.0V IO voltage support.

Based on

https://www.intel.com/content/www/us/en/docs/programmable/683751/22-1/i-o-standards-support.html#sam1394013000492__fn_OnlyAvailableForFollowingOPNs

device Supports 1.0V.

But when we tried to synthesize, Quartus tool throwed error

 

r saying that 1.0V IO is not supported.

Fpga Devkit

6 Replies

  • Venkatgubba's avatar
    Venkatgubba
    Icon for New Contributor rankNew Contributor
    2 years ago

    Tried with Quartus Prime Version 22.1 Std.

    Error gone away but seeing a critical warning.

    we are planning to use 4 Bank's of the FPGA, IO's expected to toggle at @100Mhz.

    Any suggestions regarding this warning message.

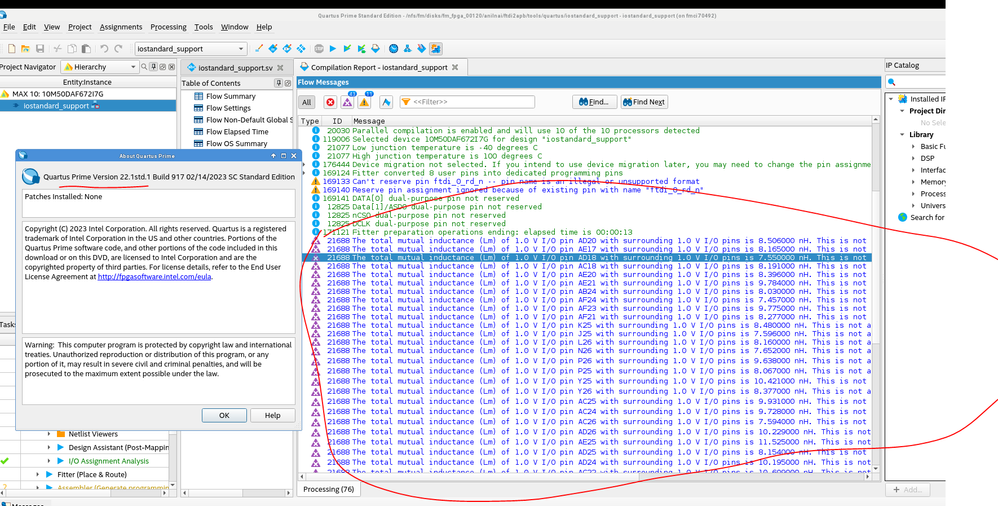

    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AD20 with surrounding 1.0 V I/O pins is 8.506000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AE17 with surrounding 1.0 V I/O pins is 8.165000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AD18 with surrounding 1.0 V I/O pins is 7.550000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AC18 with surrounding 1.0 V I/O pins is 8.191000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AE20 with surrounding 1.0 V I/O pins is 8.396000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AE21 with surrounding 1.0 V I/O pins is 9.784000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AB24 with surrounding 1.0 V I/O pins is 8.030000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AF24 with surrounding 1.0 V I/O pins is 7.457000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AF23 with surrounding 1.0 V I/O pins is 9.775000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AF21 with surrounding 1.0 V I/O pins is 8.277000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin K25 with surrounding 1.0 V I/O pins is 8.480000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin J25 with surrounding 1.0 V I/O pins is 7.596000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin L26 with surrounding 1.0 V I/O pins is 8.160000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin N26 with surrounding 1.0 V I/O pins is 7.652000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin P26 with surrounding 1.0 V I/O pins is 9.638000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin P25 with surrounding 1.0 V I/O pins is 8.067000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin Y25 with surrounding 1.0 V I/O pins is 10.421000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin Y26 with surrounding 1.0 V I/O pins is 8.377000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AC25 with surrounding 1.0 V I/O pins is 9.931000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.
    Critical Warning (21688): The total mutual inductance (Lm) of 1.0 V I/O pin AC24 with surrounding 1.0 V I/O pins is 9.728000 nH. This is not allowed. The total mutual inductance must be less than or equal to 7.41 nH.

    • FvM's avatar
      FvM
      Icon for Super Contributor rankSuper Contributor
      2 years ago
      Hi,
      mutual inductance spec for 1.0 V IO standard is explained in MAX10 General Purpose I/O User Guide. General suggestion to reduce total mutual inductance: leave unused pins in 1.0V bank.
