oneAPI on Cyclone10gx

yeah that project has no board-specific settings.

like I said: watch out for the on-chip block RAM getting too big.

@whitepau_altera I will check it out, assuming simulation will work, I could them synthetize on my board, right?

StefanoC

If you set the pins and the BRAM size, it should work on a board. You will need to use the nios tools to connect to the niosv and monitor it over the JTAG bus. There are guides for that though

https://cdrdv2-public.intel.com/784469/an-784468-784469.pdf

@whitepau_alterathe simulation does work. I will edit the sample dma to actually do something useful rather than copying/comparing elements. You mentioned I will have to use the nios tools to connect to the soft core; however I was planning on running my code on the computer CPU with some part of my algorithm memory mapped to an IP that will result from oneAPI compiler. So in this case, if I understand correctly, I don't need to connect to the niosV (unless I want to inspect/debug), am I right?

thanks!

Hi @whitepau_altera I am still running the plain niosv sample simple dma (as it is in the repository without any modification), trying to run in on the hardware and have the cpu (C) interact with the fpga (I confirm the simulation, as detailed in the github repository works).

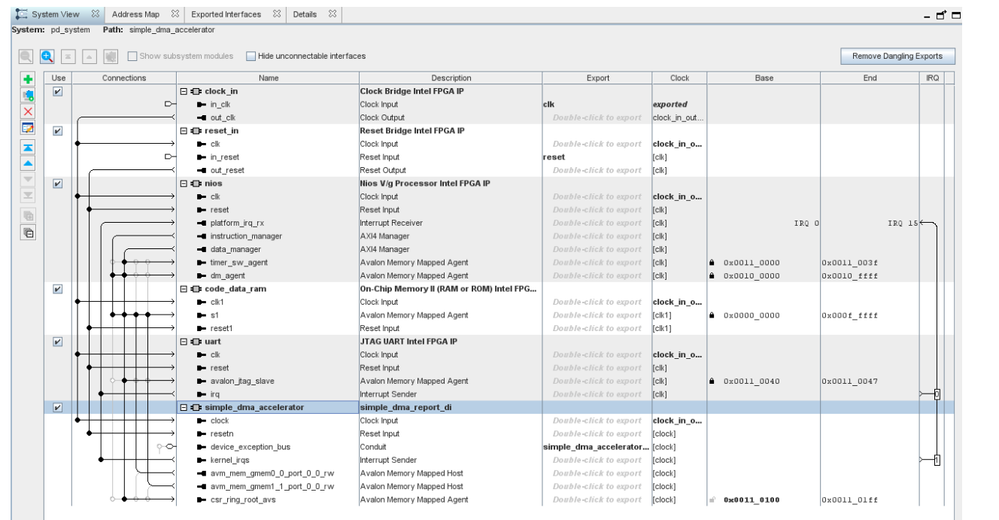

I added this top node entity:

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.NUMERIC_STD.ALL;

entity test_system is
  port (
    clk : in STD_LOGIC;
    rst : in STD_LOGIC
  );
end entity test_system;

architecture Behavioral of test_system is
    component pd_system is
        port (
            clk_clk                                          : in  std_logic                     := 'X';
            reset_reset                                      : in  std_logic                     := 'X';
            simple_dma_accelerator_device_exception_bus_data : out std_logic_vector(63 downto 0)
        );
    end component pd_system;

    signal pd_system_clk : std_logic;
    signal pd_system_rst : std_logic;

begin
    u0 : pd_system
        port map (
            clk_clk                                          => pd_system_clk,
            reset_reset                                      => pd_system_rst,
            simple_dma_accelerator_device_exception_bus_data => open
        );
    pd_system_clk <= clk;
    pd_system_rst <= rst;

end architecture Behavioral;

I synthesized the project onto my board, I got a few warnings:

1) Critical Warning(12677): No exact pin location assignment(s) for 1 pins of 2 total pins. For the list of pins please refer to the I/O Assignment Warnings table in the fitter report

2) No user constrained base clocks found in the design. Calling "derive_clocks -period 1.0"

3)Timing requirements not met

clk -6.334 -18110.791 7371 Slow 900mV 100C Model 1
altera_reserved_tck -1.788 -410.899 380 Slow 900mV 100C Model 2

About 1) I think it's referring to the clock/reset signals, I tried to put clock location in the pin planner as you suggested "C10_CLKUSR" but that value it's not accepted, scrolling the dropdown menu I selected "PIN_C10 I/O Bank 2k"; I haven't yet assigned the reset that's why one location is not assigned.

I then used the USB blaster JTAG to program the board (successfully).

then I compiled /kernels/simple_dma/ using "make fpga" rather than "make report" and I got an executable, but when I run it I got this:

tetto@ubuntuoffice:~/oneAPI-samples/DirectProgramming/C++SYCL_FPGA/ReferenceDesigns/niosv/kernels/simple_dma/build$ ./simple_dma.fpga
Running on device: SimulatorDevice : Multi-process Simulator (aclmsim0)
terminate called after throwing an instance of 'sycl::_V1::runtime_error'
  what():  Invalid device program image: size is zero -30 (PI_ERROR_INVALID_VALUE)
Aborted (core dumped)
tetto@ubuntuoffice:~/oneAPI-samples/DirectProgramming/C++SYCL_FPGA/ReferenceDesigns/niosv/kernels/simple_dma/build$ sudo env "LD_LIBRARY_PATH=$LD_LIBRARY_PATH" ./simple_dma.fpga
terminate called after throwing an instance of 'sycl::_V1::runtime_error'
  what():  No device of requested type available. Please check https://software.intel.com/content/www/us/en/develop/articles/intel-oneapi-dpcpp-system-requirements.html -1 (PI_ERROR_DEVICE_NOT_FOUND)
Aborted

I tried with sudo as I suspected it couldn't find the board; I exported a variable because without it could complain about a missing library, however it screams about a runtime error.

Am I missing something to run this sample on the board and have the C interact with it?

thanks!!

@whitepau_altera

I successfully synthesized the niosV example (as it is), adding this top node:

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.NUMERIC_STD.ALL;

entity test_system is
  port (
    clk : in STD_LOGIC;
    rst : in STD_LOGIC
  );
end entity test_system;

architecture Behavioral of test_system is
    component pd_system is
        port (
            clk_clk                                          : in  std_logic                     := 'X';
            reset_reset                                      : in  std_logic                     := 'X';
            simple_dma_accelerator_device_exception_bus_data : out std_logic_vector(63 downto 0)
        );
    end component pd_system;

    signal pd_system_clk : std_logic;
    signal pd_system_rst : std_logic;

begin
    u0 : pd_system
        port map (
            clk_clk                                          => pd_system_clk,
            reset_reset                                      => pd_system_rst,
            simple_dma_accelerator_device_exception_bus_data => open
        );
    pd_system_clk <= clk;
    pd_system_rst <= rst;

end architecture Behavioral;

However when I tried (a few things) to run the software companion produced by oneAPI I got:

tetto@ubuntuoffice:~/oneAPI-samples/DirectProgramming/C++SYCL_FPGA/ReferenceDesigns/niosv/kernels/simple_dma/build$ ./simple_dma.fpga
Running on device: SimulatorDevice : Multi-process Simulator (aclmsim0)
terminate called after throwing an instance of 'sycl::_V1::runtime_error'
tetto@ubuntuoffice:~/oneAPI-samples/DirectProgramming/C++SYCL_FPGA/ReferenceDesigns/niosv/kernels/simple_dma/build$
tetto@ubuntuoffice:~/oneAPI-samples/DirectProgramming/C++SYCL_FPGA/ReferenceDesigns/niosv/kernels/simple_dma/build$ sudo ./simple_dma.fpga
[sudo] password for tetto:
./simple_dma.fpga: error while loading shared libraries: libdspba_mpir.so.23: cannot open shared object file: No such file or directory
tetto@ubuntuoffice:~/oneAPI-samples/DirectProgramming/C++SYCL_FPGA/ReferenceDesigns/niosv/kernels/simple_dma/build$ sudo LD_LIBRARY_PATH=$LD_LIBRARY_PATH  ./simple_dma.fpga
terminate called after throwing an instance of 'sycl::_V1::runtime_error'
  what():  No device of requested type available. Please check https://software.intel.com/content/www/us/en/develop/articles/intel-oneapi-dpcpp-system-requirements.html -1 (PI_ERROR_DEVICE_NOT_FOUND)
Aborted
tetto@ubuntuoffice:~/oneAPI-samples/DirectProgramming/C++SYCL_FPGA/ReferenceDesigns/niosv/kernels/simple_dma/build$

Coming back to this example, I was also playing with:

https://github.com/oneapi-src/oneAPI-samples/blob/master/DirectProgramming/C%2B%2BSYCL_FPGA/Tutorials/GettingStarted/fpga_compile/part3_dpcpp_lambda_usm/src/vector_add.cpp

oneAPI seems to produce a quartus project completed with the top node (that I can compile and synthesize), but again when I run the executable I encounter a runtime error. In that vector_add.src it seems this "unified memory" would just do the job, but I recall you mentioned earlier one has to edit the RTL design (although in this part3 the top node seems properly generated and needed IPs/avalon devices are there and instantiated).

Stefano, let me refer you once again to this comment: https://community.intel.com/t5/Intel-High-Level-Design/oneAPI-on-Cyclone10gx/m-p/1573813/highlight/true#M3497

The code you got from the code sample is the dark green boxes in this picture (Host code and Application Kernel). without all the other stuff in the middle, that generated executable file will not work.

The executable that oneAPI emits will not work without a supported BSP. Since you have selected -Xstarget=Cyclon10GX, you have created an IP, which is just the Application Kernel in that picture. This means that when you use the Application Kernel, it is treated like any other IP that was written using Verilog or VHDL.

To 'run' your IP, you will need to program the Nios-based design you created onto your board and execute Nios code to control the IP.

oneAPI seems to produce a quartus project completed with the top node (that I can compile and synthesize), but again when I run the executable I encounter a runtime error. In that vector_add.src it seems this "unified memory" would just do the job, but I recall you mentioned earlier one has to edit the RTL design (although in this part3 the top node seems properly generated and needed IPs/avalon devices are there and instantiated).

---

That generated Intel® Quartus® Prime project is only for estimating fMAX of your IP. The point of it is to assign the pins of the IP to virtual pins so that Intel® Quartus® Prime will place and route it without actually connecting it to physical pins. Here is an explanation of virtual pin assignments https://www.youtube.com/watch?v=QET0lC-jdAQ

If you wish to build a custom BSP so that you can install your C10GX PCIe card into a computer and communicate with it through the OpenCL runtime (and have oneAPI host code control it), we have guidance on custom BSP creation here:

Getting started : https://ofs.github.io/latest/hw/common/user_guides/oneapi_asp/ug_oneapi_asp/

Reference Manual: https://ofs.github.io/latest/hw/common/reference_manual/oneapi_asp/oneapi_asp_ref_mnl/
