10M08SAU324I7G SMAP Length Routing constraints

Hi ,

We are using 10M08SAU324I7G chipset in our design. We are using SMAP interface to Program the FPGA(XCKU5P series) from CPLD.

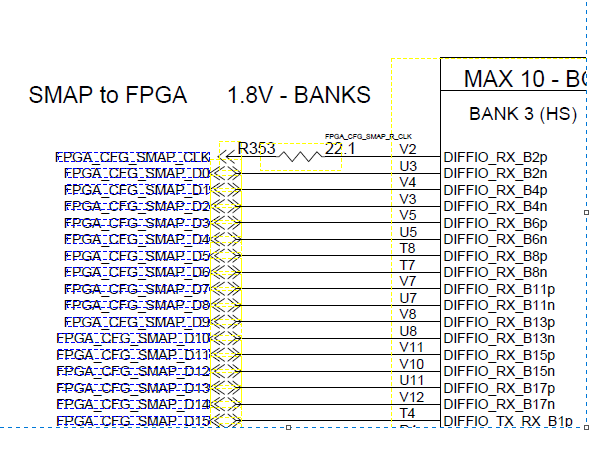

Below are the Pins are used for SMAP interface. In our design, we have routed 15inch traces between FPGA and CPLD due to dense board. For this we have simulated and it pass only "18_RIO_R50C" model.

Is it possible to configure this "18 RIO R50C" model for the pins listed below?Please advise and share if any guidelines.
