New ContributorI unable to create a .vwf file
Greetings,
I'm using a Quartus II version 11.1 Web Edition, and I have Model Sim starter edition installed.

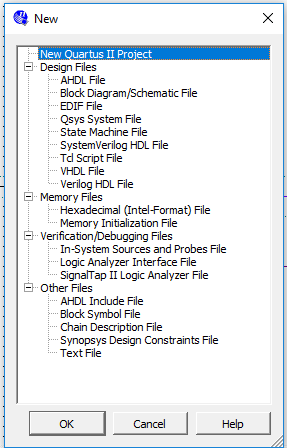

I'm trying to create a .vwf file to simulate my design but I'm not finding the option for it:
How should I get it?
Thank you in advance,
Best regards.
1 Reply
CalvinJoaz_P_IntelContributor
Hi MAlha,
Vector Waveform File (.vwf) feature has been removed in Quartus II version 11.1 Web Edition. Quartus II Web Edition Software v9.1s2 is the last version supported for (.vwf) editor.
The version 9.1 can still be downloaded. It also doesn't require a license anymore. Check link below.
Btw, you can write an HDL testbench and simulate in Modelsim, it can be done as quickly as creating a waveform.
Check the previous thread for more info.
Hope this would be helpful.
Thank you.
