Hi MAlha,

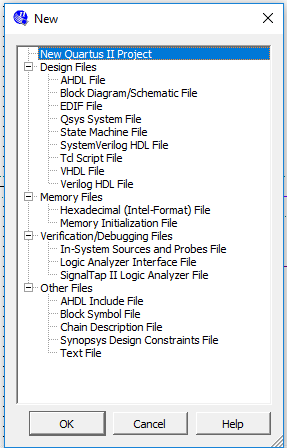

Vector Waveform File (.vwf) feature has been removed in Quartus II version 11.1 Web Edition. Quartus II Web Edition Software v9.1s2 is the last version supported for (.vwf) editor.
The version 9.1 can still be downloaded. It also doesn't require a license anymore. Check link below.
https://www.intel.com/content/www/us/en/programmable/downloads/software/archives/arc-index.html?_ga=2.87733528.1673820480.1541117328-1133098667.1531296192&elq_cid=4612556&erpm_id=6981650
Btw, you can write an HDL testbench and simulate in Modelsim, it can be done as quickly as creating a waveform.
Check the previous thread for more info.
https://forums.intel.com/s/question/0D50P00003yyN3jSAE/how-to-create-a-vector-waveform-file-in-quartus-110
Hope this would be helpful.
Thank you.
