New ContributorHi, I tried to apply the stimuli using modelsim to the sequential adder that I described in vhdl. In particular:

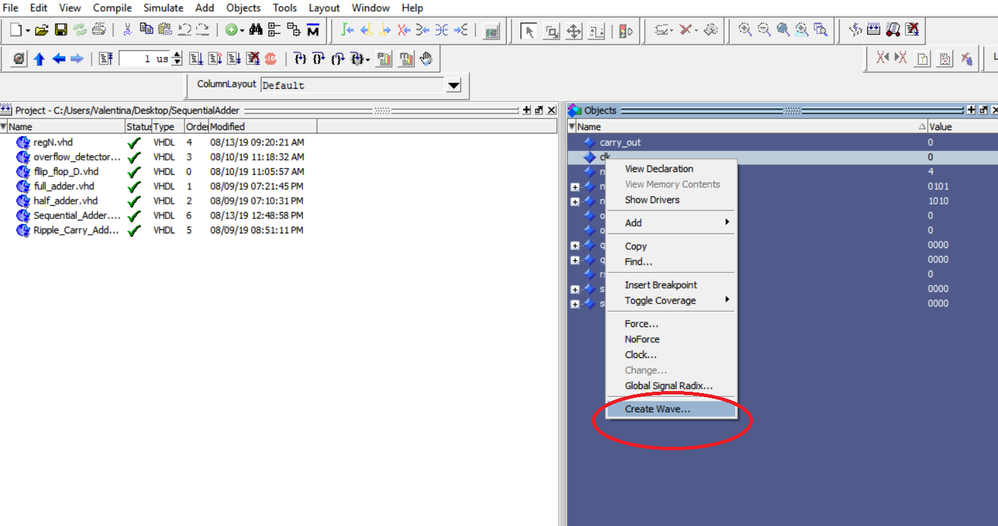

1) I tried to generate the clock signal like this (with create wave): here is the screenshot:
But doing so it does not work,
num1 is the first number to be added
num2 is the second number
s, the result always fixed to zero
rst is the reset active low

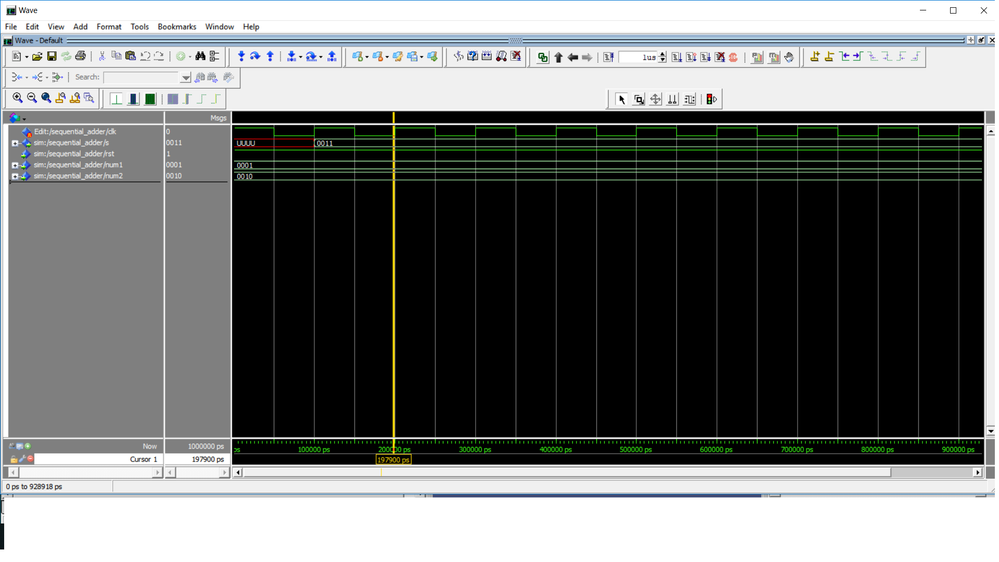

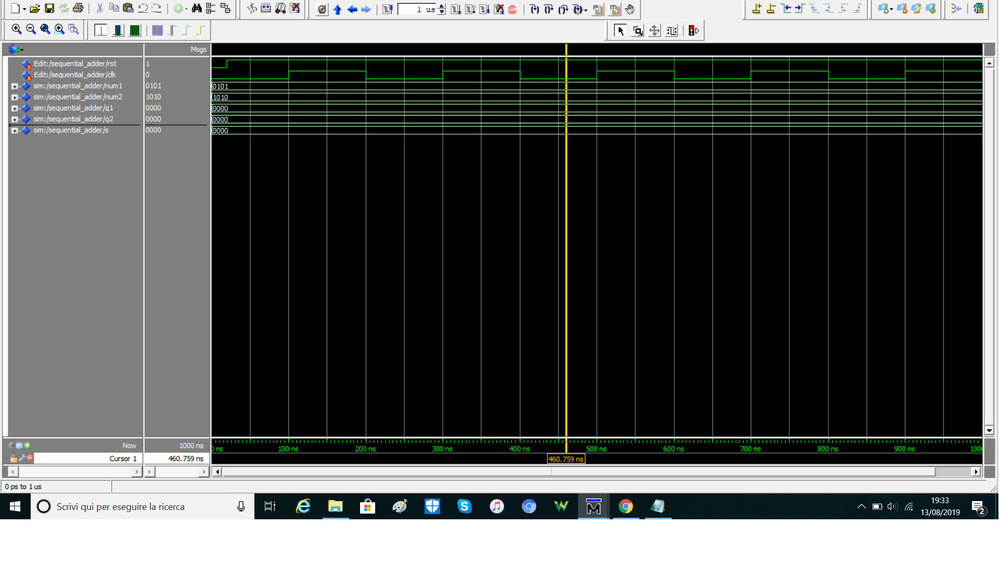

here is the result of the simulation:

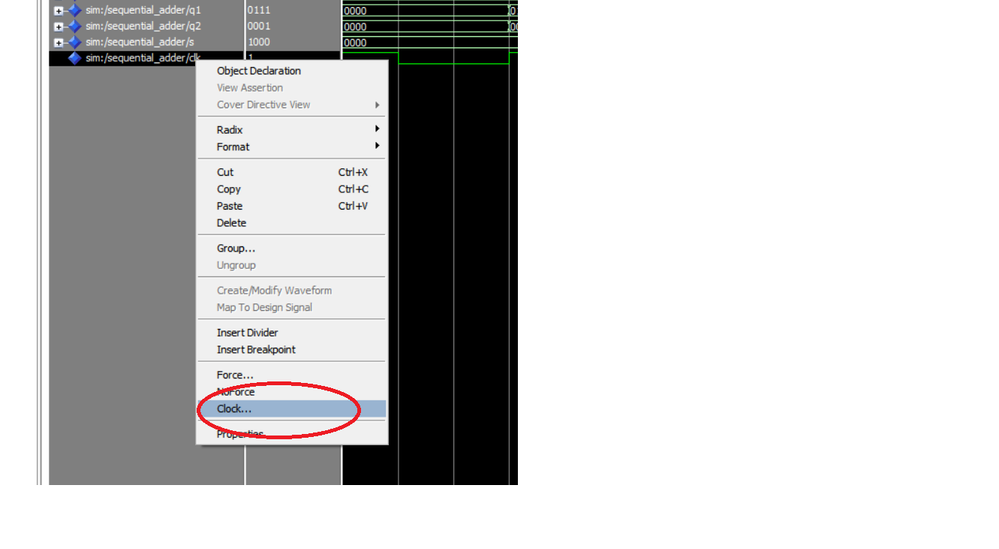

2) I generated the clock like this :

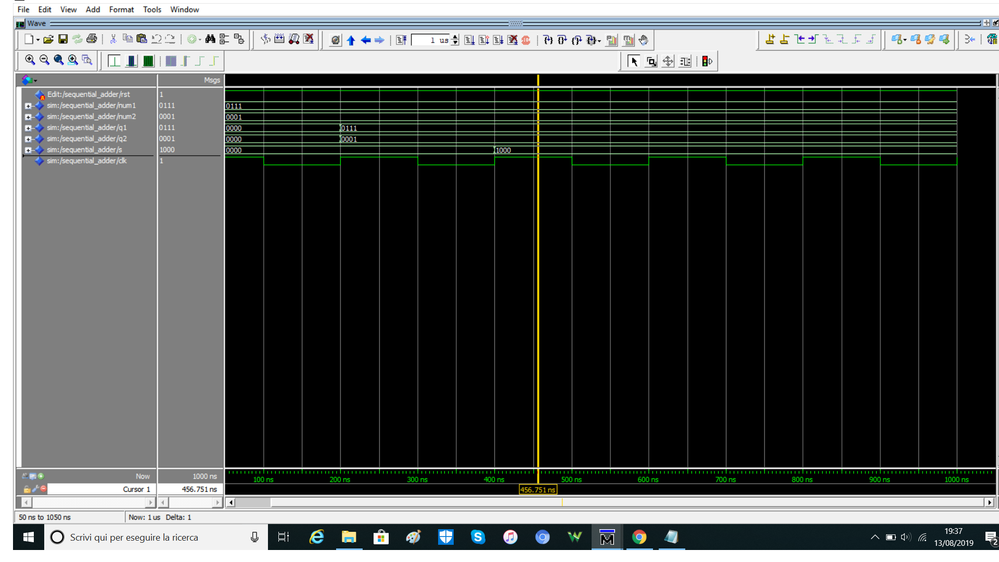

Now the result is correct.
Why in the first case is it wrong? Thanks a lot .
Hi,
Thanks for the details.
Why don`t you use latest Free Quartus(Lite) & Modelsim starter versions?
http://fpgasoftware.intel.com/18.1/?edition=lite&platform=windows&download_manager=dlm3&product=modelsim_ae#tabs-2
I would like to suggest you, try at your end with latest versions also as mentioned vector waveform in previous post.
I am looking forward to listen you.
Thanks,
Vicky
