DE10 STANDARD Linux issue

Hi CAlex,

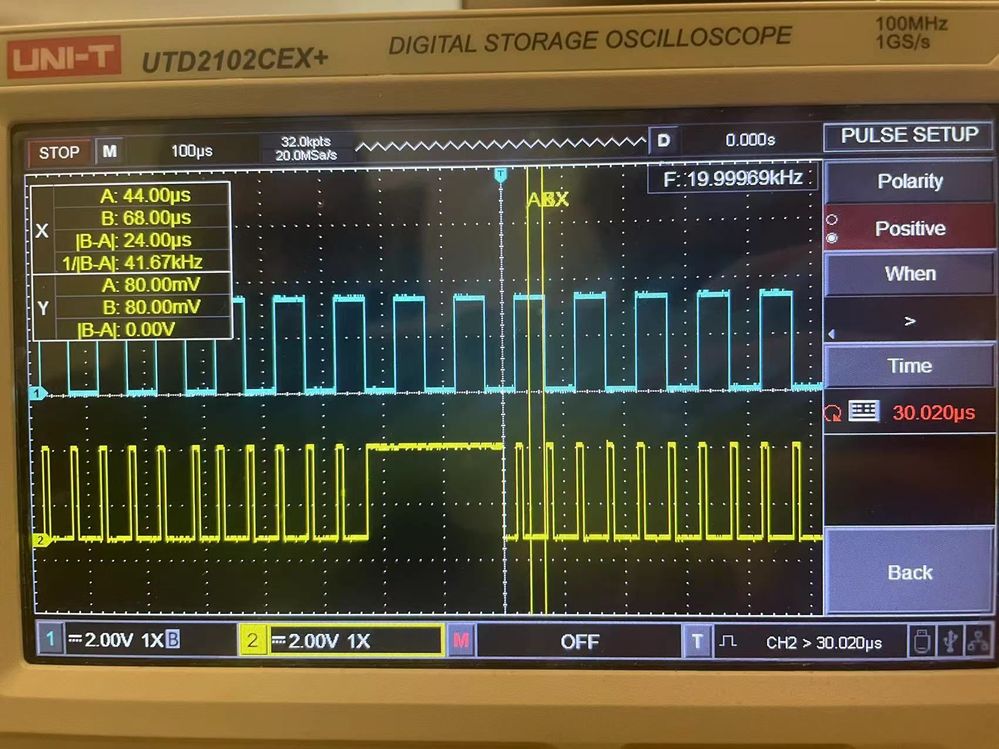

From your picture, I see is a there is a 100us ++ in ur code detection in Linux application.

May I know it happens sometimes? Is your linux application solely running on a single task just to capture the toggling?

Thanks.

Regards,

Aik Eu

Hi CAlex,

Can share with me your project design?

Btw, I cant be sure this is related to the linuxsocfpga real time limitation or not, probably you can increase the time where your code detect an interrrupt triggerd to perform signal toggling. This will help to troubleshoot the running code because looks like for every 25us when an interrupt occured due to clock edge change and the linux application code must perform a signal toggling.

Another method is use a baremetal application to test your test code as a comparison.

I saw this document which talks about the latency issue:

https://www.rocketboards.org/foswiki/pub/Documentation/AlteraSoCLTSIRTKernel/ELC-Linux-RT.pdf

Thanks.

Regards,

Aik Eu

Hi,

The design is attached.

And I didn't do the interrupt this time.

I'll read through the resource you gave me.

Thank you for help.

Reguards.

Hi CAlex,

I think I misunderstood that you are using interrupt previuosly from another case.

You are using HPS polling method to detected the changes in the PIO IP?

If you are using polling method, how fast that it tries to read the changes?

And you are not running baremetal application right?

Thanks.

Regards,

Aik Eu

Hi CAlex,

Do you mean currently the issue is not occuring anymore if uses polling method?

May I know where is the application code in the project folder which you sent me?

Thanks.

Regards,

Aik Eu

Hi CAlex,

I see you have disabled the timer interrupt call in your code.

Do you mean if you use interrupt to call a function to set the changes of the output signal as indicator(observe on the oscilloscope) then there is no issue? But if you use while loop then there will be issue?

If I am correct for the below:

1. Your polling method is using a while(1) loop.
2. Everytime the clock signal edge(low->high) happened, there will be changes on the timer register which you will check within the while loop. Your output signal indicatoer will go high when it happened.
3. Everytime you call the myfunction(), it is going into a for loop to perform counting. which creates a short delay that meant for the output signal indicator to go low again.
4. your output indicator signal is taking longer time than usual to change from high to low.
5. It looks like sometimes it is taking a longer time when running the while loop.

Thanks.

Regards,

Aik Eu

Hi，

you are basically right, what my code do is to:

1.check the edge change(high -> low or low->high) of the timer flag.

2.put start signal to 1 and jump to myfunction(),

3.when it is done(and let us cross fingers it is done in time),set the start signal to 0

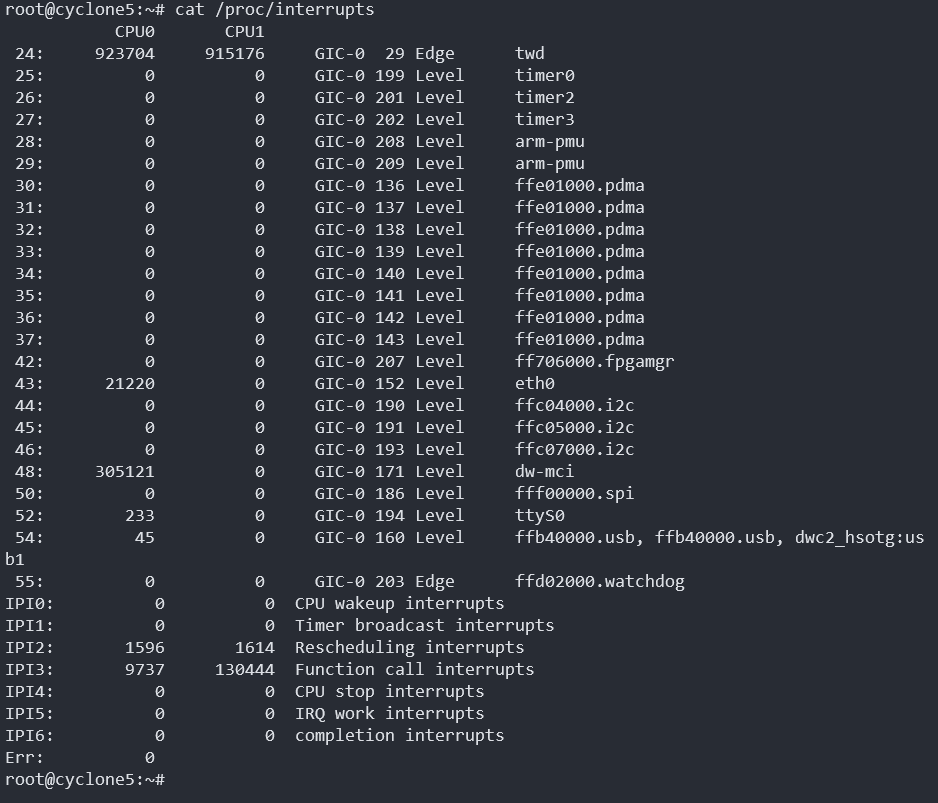

Well, I didn't succeed in linux interrupt, still trying to figure out how an interrupt communicate with the userspace(and if it is reading/writing to userspace, it need to use another interrupt, I don't wish the timer signal is interruptted).

For this issue,when every edge changed(blue line,which is done by FPGA), a yellow signal(userspace signals) will be 1 and when myfunction() is done it set to 0.

And then repeat the work.

But after several seconds of working progress, the issue will occur, which is an unstable disaster for my system.

So I want to know how to prevent this problem.

Thank you for your help.

Reguards.

Hi CAlex,

The while loop method will not guarantee a consistent timing for sure.

The operation should be done with interrupt.

Thanks.

Regards,

Aik Eu

Hi CAlex,

I will close this thread for now. Do consider open a new thread if there is any further question to follow up.

Do give a very good survey if receive any, Thanks a lot!

Thanks.

Regards,

Aik Eu
