ZZive
New Contributor
New ContributorWhy is my waveform like this?
My clock is a clock though PLL. This waveform is messy
Forum Discussion
3 Replies
Ken_I_IntelMessy? What do you mean?
- ZZive

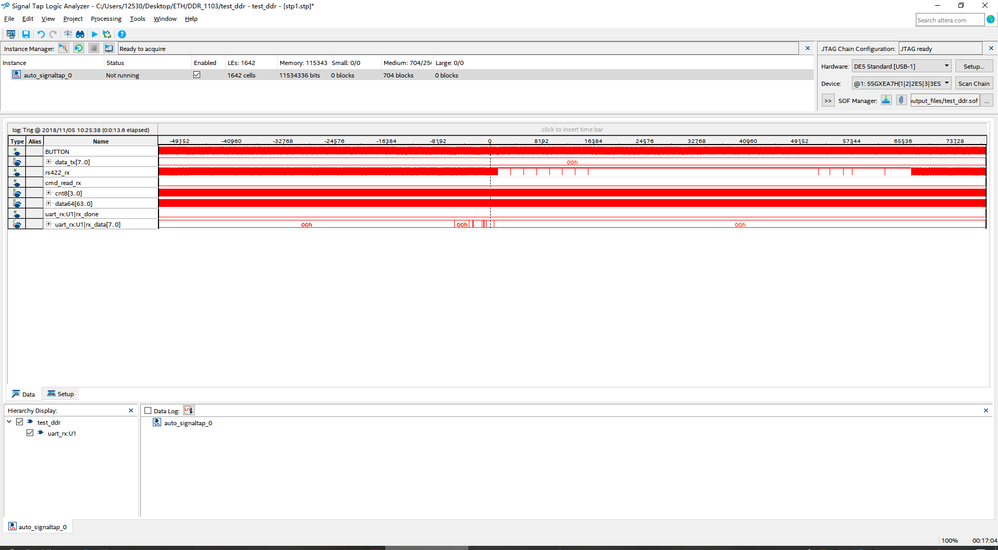

the project is UART，they logic is very simple。The frequency of clock is 50Mhz. however, they waveform is so mess. I don't know why the waveform like this.
sstrellSuper Contributor
Without an explanation as to why this is "messy" or showing the design, there's no way we can help.
Have you zoomed into the waveforms (left click)? Do they look correct when you do?
