Where did the Memory Editor settings go? (Quartus 17.1)

When doing a MIF update, I get the following warning:

Warning (113007): Byte addressed memory initialization file "armboot.hex" was read in the word-addressed format

Not surprisingly, when reading the memory, it is in fact offset by 4.

Now, I can't find where to turn on the option to read the .hex file using byte-addressing.

To make things worse, Intel's solution, found here: https://www.intel.com/content/www/us/en/programmable/quartushelp/17.1/index.htm#msgs/msgs/wmio_mio_byte_hex_word_read.htm

does NOT work since there is not any "Memory Editor" in the "Options" menu.

When I do find the "In System Memory Content" Editor in "Tools" there is no option for changing the addressing.

How can I get Quartus to properly read the .hex file using byte addressing?

4 Replies

  • BGrat's avatar
    BGrat
    Icon for New Contributor rankNew Contributor
    6 years ago

    Update: I was able to find the elusive "Memory Editor" window when I first opened a .mif file and had it active. Having a .hex file open did not work.

    Is there a reason for this, or is it just poor user-interface?

    • AnandRaj_S_Intel's avatar
      AnandRaj_S_Intel
      Icon for Regular Contributor rankRegular Contributor
      6 years ago

      Hi @BGrat​ ,

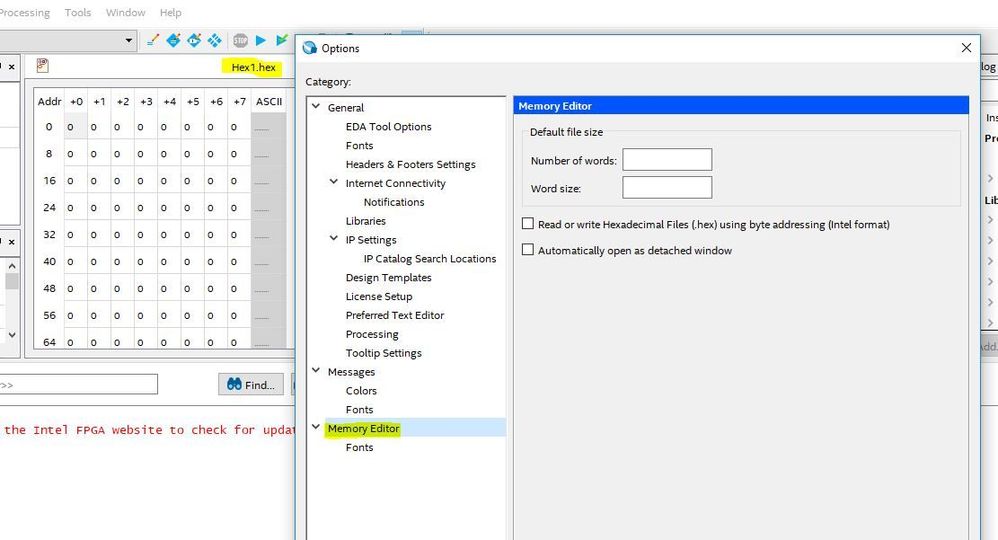

      Memory Editor option is visible once you open a .hex file in quartus and go to Tools > Options > Memory Editor.

      Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

      Regards

      Anand

  • BGrat's avatar
    BGrat
    Icon for New Contributor rankNew Contributor
    6 years ago

    Now I'm getting this warning, even though I have no idea where this .hex file is used and it does not show up in the Analysis & Synthesis RAM report...

    Warning (113006): Word addressed memory initialization file "pm_uc_ww49p5_main.hex" was read in the byte-addressed format

    • RRomano001's avatar
      RRomano001
      Icon for Contributor rankContributor
      6 years ago

      HI, not sure this address your problem.

      Tools memory content editor is not referred to files but to device thru JTAG.

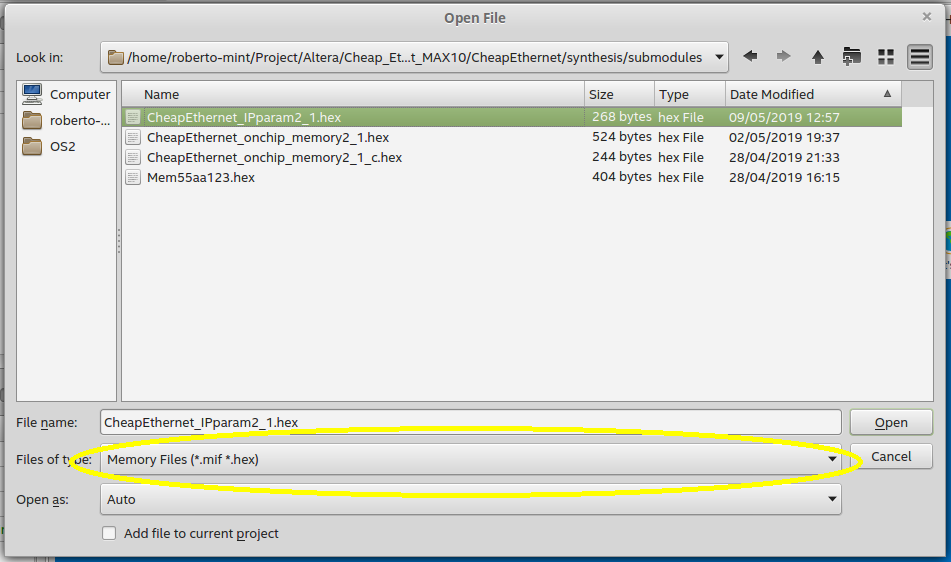

      To edit an Hex file you can use file -open select HEX-MIF then select file and edit.

      Before to open edit as shown a panel require you about word size slecting number of bit:

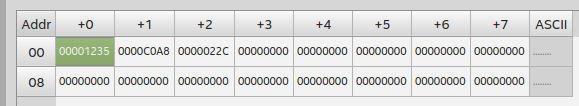

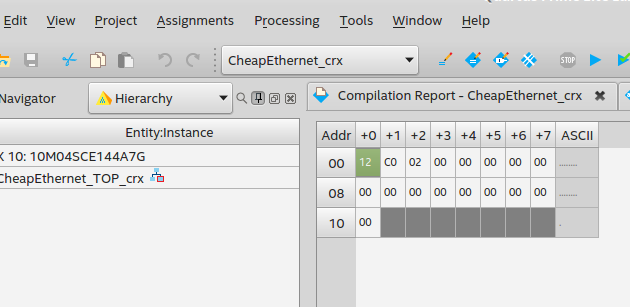

      after that cell editor pane appear on quartus editor space:

      Not sure due offset byte /word can be 2 not 4 so you are reading 32 bit mode?
