Timing of a parallel bus in a source synchronous interface

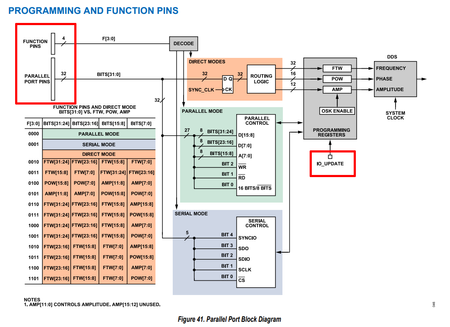

Hi all! I'm testing an interface between a CycloneIV fpga and a AD9915 DDS, and I observe random mishaps. This is an extract of AD9915 datasheet: When DDS is in parallel mode (selected via...
ShengN_altera's avatar
ShengN_altera
Icon for Super Contributor rankSuper Contributor
3 years ago

Hi,

I miss the constraint set_multicycle_path. This constraint most probably suits your case better. Checks this video (10:53) for further details.

For example before set_multicycle_path (image),

After set_multicycle_path (image),

Thanks,

Best Regards,

Sheng

p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.
