The quartus prime software quit unexpectedly

Hi

I got Quartus prime Problem report in the middle of the placement - I got pop up message and then the Quartus stuck

The problem details are :

Problem Details
Error:
Internal Error: Sub-system: PCA, File: /quartus/fitter/pca/qi/pca_quartus_fpp_interface.cpp, Line: 91
ports.size() == 1
Stack Trace:
Quartus 0xeb66f: PCA::FPP_INTERFACE::info_for_placed_iterm(CDB_ATOM_ITERM const*) const + 0x43f (fitter_pca)
Quartus 0x10cb2a: PCA::FPP_CLOCK_ROUTER::FPP_CLOCK_ROUTER(std::vector<PCA::CLOCK, std::allocator<PCA::CLOCK> > const&, PCA::DYGR_DEVICE const&, CDB_ATOM_NETLIST const&, PCA::PCA_NETLIST const&, CLK::BLOCK_DB const&, PCA::FPP_INTERFACE, PCA::ATOM_CONSTRAINTS const&, int, std::shared_ptr<CCLK_PCA::CTS_INTERFACE>, QTL_HASH_LITE<std::pair<QTL::POINT<2, int, CLK::SECTOR_SPACE>, PCA::CCPR>, std::vector<QTL::BBOX<2, int, CLK::SECTOR_SPACE>, std::allocator<QTL::BBOX<2, int, CLK::SECTOR_SPACE> > >, QTL_OPS<std::pair<QTL::POINT<2, int, CLK::SECTOR_SPACE>, PCA::CCPR>, void> > const&, bool) + 0x201a (fitter_pca)
Quartus 0xc6caf: PCA::run_pca() + 0x18bf (fitter_pca)
Quartus 0x8597ff: (anonymous namespace)::bi_run_pca(BSYN_STRATEGY_TYPE) + 0xef (fitter_vpr20kmain)
Quartus 0x85b591: bi_bsyn() + 0x71 (fitter_vpr20kmain)
Quartus 0x15b446: VPR_QI_FACADE::bsyn() + 0x36 (fitter_vpr20kmain)
Quartus 0x15b850: VPR_QI_FACADE::vpr_bsyn_flow(bool) + 0x20 (fitter_vpr20kmain)
Quartus 0x7f593: FDRGN_EXPERT::run_vpr(bool, bool, bool, bool, BSYN_FLOW_TYPE) + 0x193 (fitter_fdrgn)
Quartus 0x8cd73: FDRGN_EXPERT::place() + 0xa3 (fitter_fdrgn)
Quartus 0x27577: fit2_fit_place_auto + 0x137 (comp_fit2)
Quartus 0x4c942: TclNRRunCallbacks + 0x42 (tcl8.6)
Quartus 0x151c8: fit2_fit_place + 0x2ce (comp_fit2)
Quartus 0x4c942: TclNRRunCallbacks + 0x42 (tcl8.6)
Quartus 0x4de7b: TclEvalEx + 0x68b (tcl8.6)
Quartus 0xf3f0e: Tcl_FSEvalFileEx + 0x25e (tcl8.6)
Quartus 0xf3ffe: Tcl_EvalFile + 0x2e (tcl8.6)
Quartus 0x14316: qexe_evaluate_tcl_script(std::string const&) + 0x452 (comp_qexe)
Quartus 0x18703: qexe_do_tcl(QEXE_FRAMEWORK*, std::string const&, std::string const&, std::list<std::string, std::allocator<std::string> > const&, bool, bool) + 0x3d9 (comp_qexe)
Quartus 0x196bc: qexe_run_tcl_option(QEXE_FRAMEWORK*, char const*, std::list<std::string, std::allocator<std::string> >*, bool) + 0x559 (comp_qexe)
Quartus 0x31f17: QCU::DETAIL::intialise_qhd_and_run_qexe(QCU_FRAMEWORK&, FIO_PATH const&, std::string const&, std::string const&, char const*, std::list<std::string, std::allocator<std::string> >*, bool) + 0xc5 (comp_qcu)
Quartus 0x35ced: qcu_run_tcl_option(QCU_FRAMEWORK*, char const*, std::list<std::string, std::allocator<std::string> >*, bool) + 0x225 (comp_qcu)
Quartus 0x1cfec: qexe_standard_main(QEXE_FRAMEWORK*, QEXE_OPTION_DEFINITION const**, int, char const**) + 0x617 (comp_qexe)
Quartus 0x4031e2: qfit2_main(int, char const**) + 0x92 (quartus_fit)
Quartus 0x3f68a: msg_main_thread(void*) + 0x10 (ccl_msg)
Quartus 0x42856: msg_thread_wrapper(void* (*)(void*), void*) + 0x64 (ccl_msg)
Quartus 0x1542e: mem_thread_wrapper(void* (*)(void*), void*) + 0x5e (ccl_mem)
Quartus 0xc602: err_thread_wrapper(void* (*)(void*), void*) + 0x1e (ccl_err)
Quartus 0x6c95: thr_thread_wrapper + 0x15 (ccl_thr)
Quartus 0x43357: msg_exe_main(int, char const**, int (*)(int, char const**)) + 0x148 (ccl_msg)
System 0x1ec36: __libc_start_main + 0xe6 (c)
Quartus 0x402a95: (quartus_fit)

End-trace


Executable: quartus
Comment:
None

System Information
Platform: linux64
OS name: SUSE LINUX
OS version: 11

Quartus Prime Information
Address bits: 64
Version: 20.3.0
Build: 158
Edition: Pro Edition

Do someone know how can I solve it ?

Yishay

12 Replies

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi,


    Can you share your qar file so I can investigate this problem? To do this, go to Project->Archive Project..


    Thanks,

    Nurina


      • ymiler's avatar
        ymiler
        Icon for Contributor rankContributor
        4 years ago

        Hi

        I have more details about the problem :

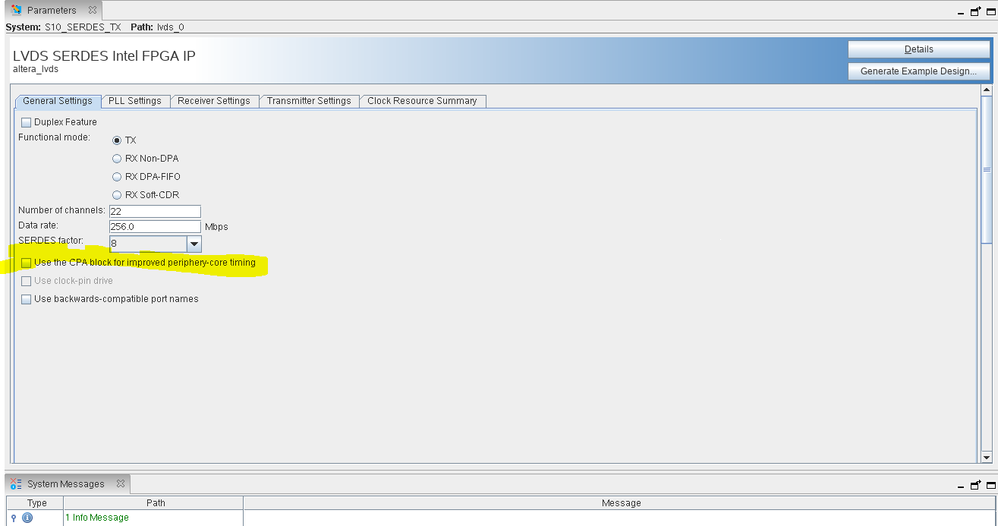

        My project includes - LVDS SERDES Intel FPGA IP - the problem occur when I sign the checkbox : Use the CPA block for improved periphery-core timing -

        Then , the Quratus crash at the place process

        Yishay

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi,


    Thanks for the .qar file and the further details. I cannot seem to open the S10_SERDES_RX IP file. Possibly got corrupted in the process of archiving the project. Can you share the zipped file of your project?


    Thanks,

    Nurina


  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi Yishay,


    Can you try including the following command in your qsf file?


    set_instance_assignment -name GLOBAL_SIGNAL OFF -to <reset_pin_name>


    Regards,

    Nurina


  • SyafieqS's avatar
    SyafieqS
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    Yishay,

    You may specify to turn off global routing at the reset signals in your top entity file as destination in the assignment and recompile and this should pass the flow. The reason for this issue is due to reset signal is auto-promoted to route globally as optimization technique by Quartus which is not an expected behavior. Upcoming KDB will be published on this.

  • ymiler's avatar
    ymiler
    Icon for Contributor rankContributor
    4 years ago

    Hi

    You may specify the reset signals in your top entity file as destination in the assignment

    {YM}- I already have a assignment in my QSF file :

    set_instance_assignment -name IO_STANDARD "1.8 V" -to s_rst_l -entity fpga_top

    Should I need another assignment ?

    Yishay

    • SyafieqS's avatar
      SyafieqS
      Icon for Super Contributor rankSuper Contributor
      4 years ago

      Yishay,

      My bad. You should specify to turn off the global routing at the reset signal in your qsf as below

      set_instance_assignment -name GLOBAL_SIGNAL OFF -to s_rst_l

      This should be working.

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi Yishay,


    Did the above solution resolved your problem?


    Regards,

    Nurina


    • ymiler's avatar
      ymiler
      Icon for Contributor rankContributor
      4 years ago

      Hi Nurina ,

      Yes - the problem is sloved

      Thank you

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi Yishay,

    That's great. I’m glad that your question has been addressed, I now transition this thread to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.

    Regards,
    Nurina
