Simulate ADC PLL FPGA MAX10

On this video I try simulate PLL https://youtu.be/Yf15rAGqxQw

My target is to simulate the ADC module. But at the moment simulation of the PLL module does not work. what am I doing wrong ??

4 Replies

  • mmare6's avatar
    mmare6
    Icon for New Contributor rankNew Contributor
    7 years ago

    I watched this movie before. From this video I learned that ADC can be simulated.

    This video shows how to add an extended output file to the ADC simulation. But my problem is that the simulation does not generate ADC and PLL output signals.

    Probably I have a error somewhere. I am a beginner, and I can not find my mistake.

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    7 years ago

    ​Hi,

    You have to include the test bench in Quartus project you need to change the settings to include your testbench.

    Settings->EDA Tools Setting ->simulation -> select compile testbench ->click testbenches->click new and add the file generated ->ok->apply->ok

    Add .vht file in quartus and start analysis and elaboration and launch Modelsim.

    Refer below link for steps

    http://denethor.wlu.ca/pc120/quartus_testbench.shtml

    Regards

    Anand

  • mmare6's avatar
    mmare6
    Icon for New Contributor rankNew Contributor
    7 years ago

    thank you for the support.

    Below I will explain my mistakes

    And I show what I corrected that the simulation started correctly.

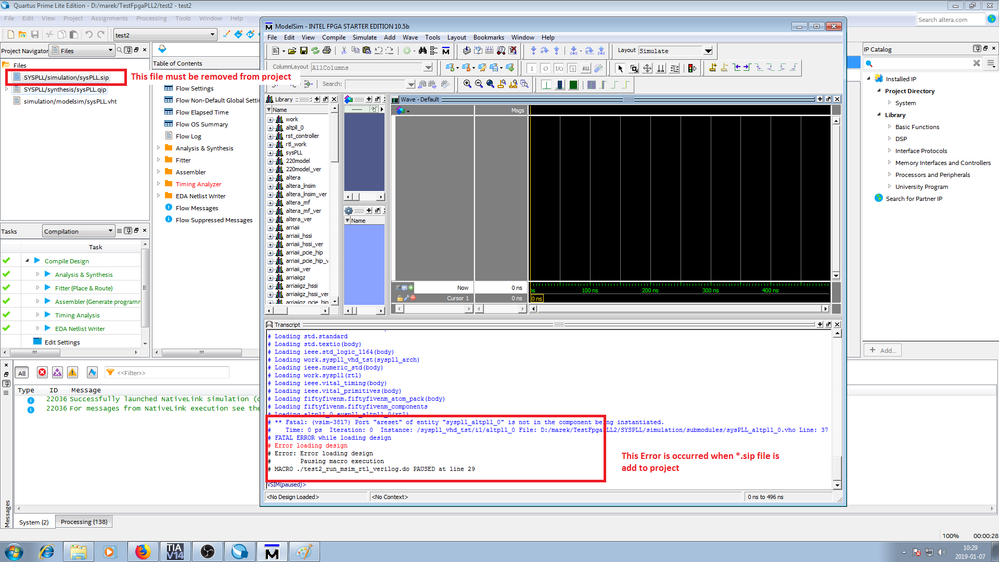

    remove *.sip file from project

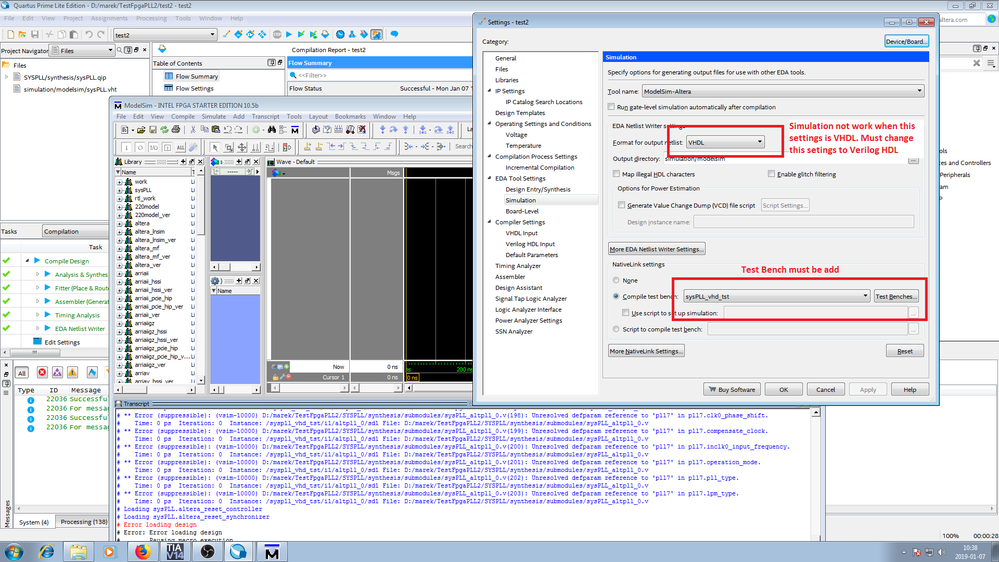

    1 Option change to Verilog HDL 1 ps

    2 Add testbench. TestBench name is important. Must be The same as top level entity

    on this video I show step by step how to do it correctly https://youtu.be/YbOnfNFJg6Y
