SignalTap: Advanced Trigger Problem

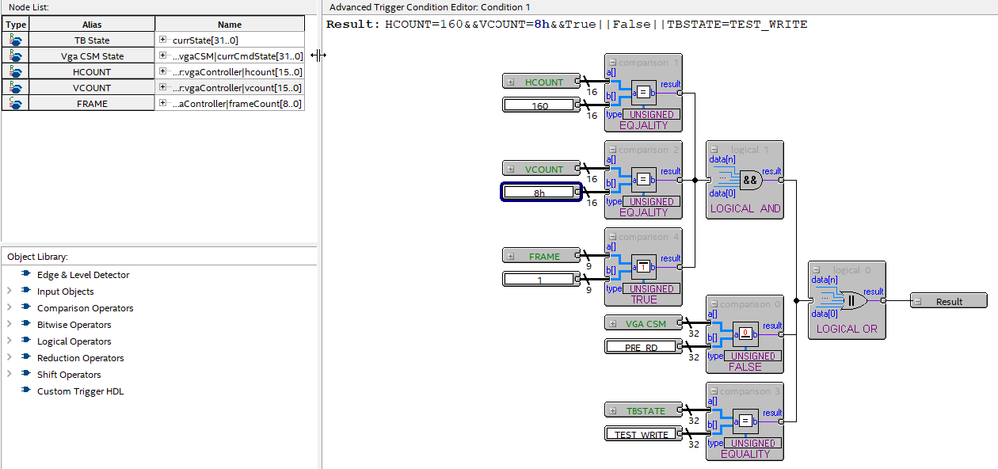

I can't get one of my triggers to work in SignalTap. The HCOUNT equality comparison works fine but the VCOUNT equality comparison will not match a bus value of 8!

VCOUNT is defined as shown below:

bit [ 15 : 0 ] hcount = 0;
bit [ 15 : 0 ] vcount = 0;

When I click on "Run Analysis", it always stops when VCOUNT=0100h

What is the problem? Is this a SignalTap bug?

Below shows the version I am using:

  • SparkyNZ's avatar
    SparkyNZ
    3 years ago

    I spent ages fiddling around yesterday - removing logic from the advanced trigger and it wouldn't work. I tried changing both radix on the input object, radix on the bus display (although I doubt that was relate at all). I even tried signed/unsigned and greater than/less than comparisons but nothing would work.

    It wasn't until I removed VCOUNT from the Node List and added it back that it began to work.

5 Replies
