Schematic Editor Problem Quartus 21.4

In the schematic editor the "pins" on the block symbols (generated by Quartus) don't line up with the grid points in the schematic editor. This makes it look like the interconnections are "skewed". ...
ShengN_altera's avatar
ShengN_altera
Icon for Super Contributor rankSuper Contributor
3 years ago

Go to Project Navigator -> Files -> include .bsf file -> open to modify

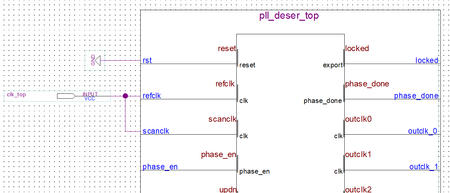

Or try to reinstall Quartus, I'm not getting any issue on editing .bsf file in v21.4 window check image attached.

Let me know if you have any further concern or update.
