Quartus Prime Pro 19.2 Linux missing devices converting programming files, crashing

I am following the Arria 10 CvP tutorial, for configuring CvP on the Arria 10 Dev Kit, located here: https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug_a10_cvp_prop.pdf M...
  • JohnT_Altera's avatar
    JohnT_Altera
    7 years ago

    Hi,

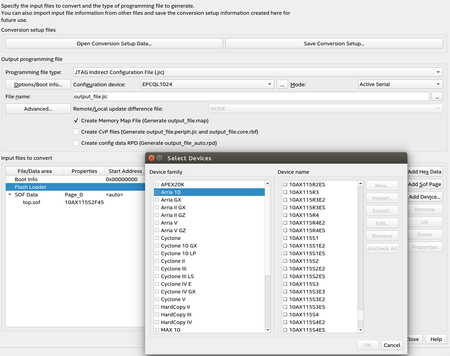

    When you convert the sof file, you should select "10AX115S2" as this is the production device which is on your board.

    For the programming issue, may I know if you are using AS (Active Serial) configuration mode? Could you check your board MSEL to see if it is selecting AS mode? If no, please change the MSEL to AS before powering up the board.

JohnT_Altera's avatar
JohnT_Altera
Icon for Regular Contributor rankRegular Contributor
7 years ago

Hi,

When you convert the sof file, you should select "10AX115S2" as this is the production device which is on your board.

For the programming issue, may I know if you are using AS (Active Serial) configuration mode? Could you check your board MSEL to see if it is selecting AS mode? If no, please change the MSEL to AS before powering up the board.

  • RBish3's avatar
    RBish3
    Icon for New Contributor rankNew Contributor
    7 years ago

    Ahhh, excellent, that's sorted the problem out John. For whatever reason, the newer tutorials don't specify that you have to set the MSEL jumpers into the Active Serial mode - hadn't made the link that the files generated earlier were configured as such. The periphery image is programmed using JTAG so its relevance wasn't particularly obvious.

    Thanks very much!
