Quartus Prime Light Waveform Simulation Error

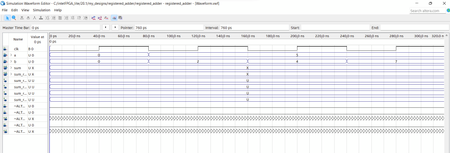

Hello, I am having trouble with running timing and functional simulations in the Simulation Waveform Editor. I have been following a a tutorial described in the book "Circuit Design With VHDL" by V...
ShengN_altera's avatar
ShengN_altera
Icon for Super Contributor rankSuper Contributor
3 years ago

Hi,


Try with these devices Arria II GX, Arria II GZ, Cyclone IV E, Cyclone IV GX, MAX II, MAX V, Stratix IV and set Target device to Auto device selected by the Fitter. Recompile and recreate the .vwf file. Also in Simulation Waveform Editor, go to Simulation > Simulation Settings and delete -novopt then save.

Some of the devices are not supported by Simulation Waveform Editor since it's old version simulator.


Best Regards,

Sheng


p/s: If any answer from community or Intel support are helpful, please feel free to mark as solution and give Kudos.


cristag's avatar
cristag
Icon for New Contributor rankNew Contributor
2 years ago

I am following the same tutorial, and getting the Error loading design, even if I deleted the -novopt and have no more pins for simulation than clk, a, b, sum and sum_reg. But I have a FPGA MAX 10 10M50DAF484C7G so, just to be clear, I cannot run Simulation with this device, right?
