Quartus Compilation Errors 275044 and 12153

Hello,

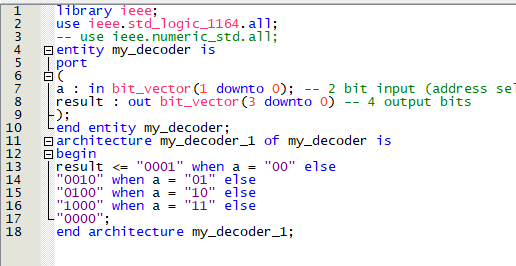

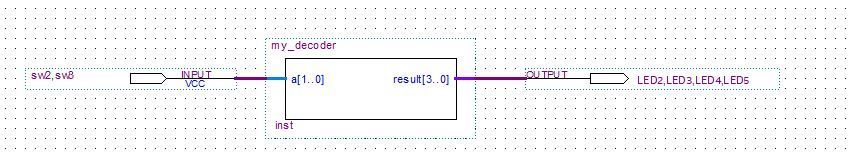

I am a first year electronics university student who is completely new to Quartus and VHDL. We have a list of tutorial sheets to follow and even though I have followed the step by step instructions am still generating the two error messages. I have absolutely no idea where to start so any advice would be extremely helpful. The attached images are of my VHDL code and top-sheet on Quartus. The fuller error messages are:

Error (275044): Port "a[1..0]" of type my_decoder of instance "inst" is missing source signal

Error (12153): Can't elaborate top-level user hierarchy

6 Replies

  • RRomano001's avatar
    RRomano001
    Icon for Contributor rankContributor
    7 years ago

    Hi, your issue are on your design not on tool.

    These error are related to your instance assigning pin to VCC, output vector 3 downto 0 is 4 element on output where 5 element..

    VHDL has nothing wrong, so it can work, assign pin by pin planner or if you prefer bdf, remove VCC from a and connect where this has to be.

    Not Quartus related. Please don't flood topic have nothing to do here, is better on vhdl forum.

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    7 years ago

    The problem is in your top level schematic. You're doing bit slicing for the wires (inputs and outputs), but you haven't named the wires, so the tool has no idea how to connect the inputs to "a" and the result outputs to the LEDs. To fix this, right-click the wires connected to the switch inputs and LED outputs, and open the wire properties. Give each one a name that matches the appropriate bits, like a[0], a[1], result[3], etc. You could also instead change the names of the inputs and outputs themselves to these names. Also, you have 5 LED outputs connected to a 4-bit bus, so I'm not sure what's going on there.

    Once the names match, the tool will know which bits to connect to which I/O. That's the problem with the design as it stands right now.
