Pin out report with Function column

I believe this is in the .pin file generated whenever you compile a design. You can also check out the datasheet for your targeted device family, which will point to a complete pinout document for your particular device.

#iwork4intel

Hi,

In addition to the above post, you can refer the links below for pin-out Files for Intel FPGA Devices,

https://www.intel.com/content/www/us/en/programmable/support/literature/lit-dp.html

https://www.intel.com/content/www/us/en/programmable/documentation/lit-dpcg.html

Regards,

Vikas

​Hi

I haven't found the way to get the Function field in the .pin file.

Do you familiar with this option?

is there any flag to enable additional columns in the pin file?

Best Regards

Hi,

You can use .csv file & here you can add addition column.

Go to "Assignments" -> "Pin Planner" then right click in "All pins" window & select "Customize Columns.."

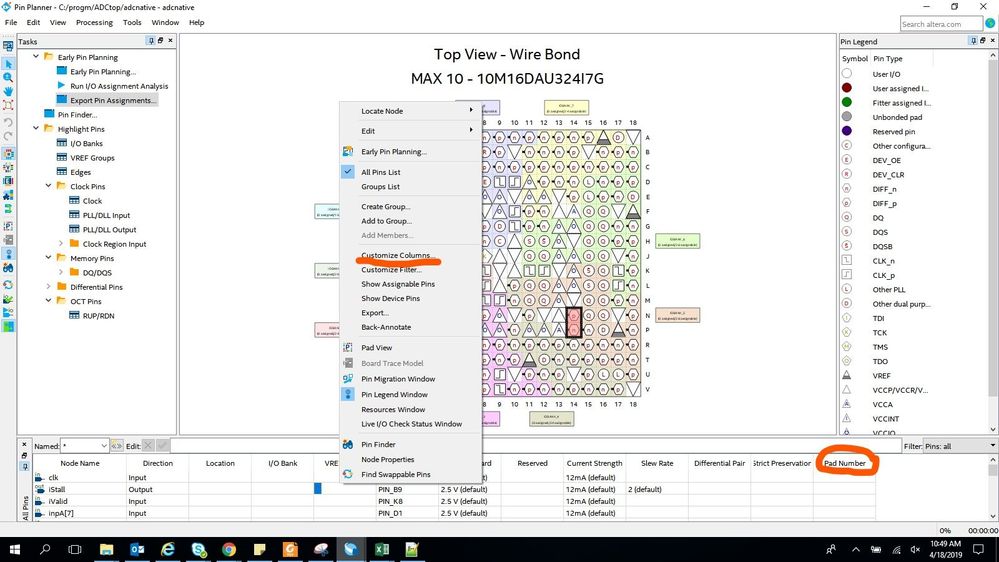

Refer the screenshot for column added as a "Pad Number"

For .csv file : In Pin Planner "File" -> "Export"

Regards,

Vikas

Hi,

Have you resolved the issue?

should I consider to be case closed?

Regards,

Vikas

Hi,

I think, It may not be available all devices data in one shot.

but for pinout report with function column, you can check my previous post.

Regards,

Vikas
