NIOS and WIZNET5300 interfacing Using Tri-state conduit bridge/Generic Tri-state controller

Hello,

I want to perform a connection between Nios and Ethernet Module Wiznet W5300.

As of now, Using On-chip FIFO Memory core, i am able to read the data in NIOS console.

Now, i need to read the same data (in NIOS console) in PC using Wiznet W5300. Any help from anyone who has already performed a connection between Nios and W5300 would be welcomed.

Please clarify me below doubts:

  1. I have included Tri-state conduit bridge/Generic Tri-state controller in SOPC whether i am right ?
  2. Any Example WIZNET code (c-code) for TCP or UDP/ or any simple example design
  3. Can i use PUTTY or Hercules to print the data?

Please help me 🙂 Thanks in Advance.

4 Replies

  • JOHI's avatar
    JOHI
    Icon for Contributor rankContributor
    7 years ago

    Hello,

    I do not understand your statement very good: If you are able to read "the data" in nios, I assume you have a working connection between your fpga board & your wiznet W5300 chip. Then the next step you can do is try to send UDP broadcast messages with your W5300 and use Wireshark (a public domain network sniffer that is one of the best there are) installed on your pc to see if you can send a simple message with the W5300.

    If you want to simplify your job: use a second network card in a separate network with only the W5300 and your pc.

    Best Regards,

    Johi.

  • SS5's avatar
    SS5
    Icon for Occasional Contributor rankOccasional Contributor
    7 years ago

    Hello JOHI,

    First of all thanks for your response.

    First time i am working with NETWORK protocol. So i don`t have much idea about the working connection between the board & wiznet W5300 chip.

    As per your suggestion, i will install the Wireshark.

    Once again i am rising my question,

    1. What about the Qsys Design ?
    2. Can i use Tri-state conduit bridge/Generic Tri-state controller Components in SOPC for W5300 chip communication.
  • SS5's avatar
    SS5
    Icon for Occasional Contributor rankOccasional Contributor
    7 years ago

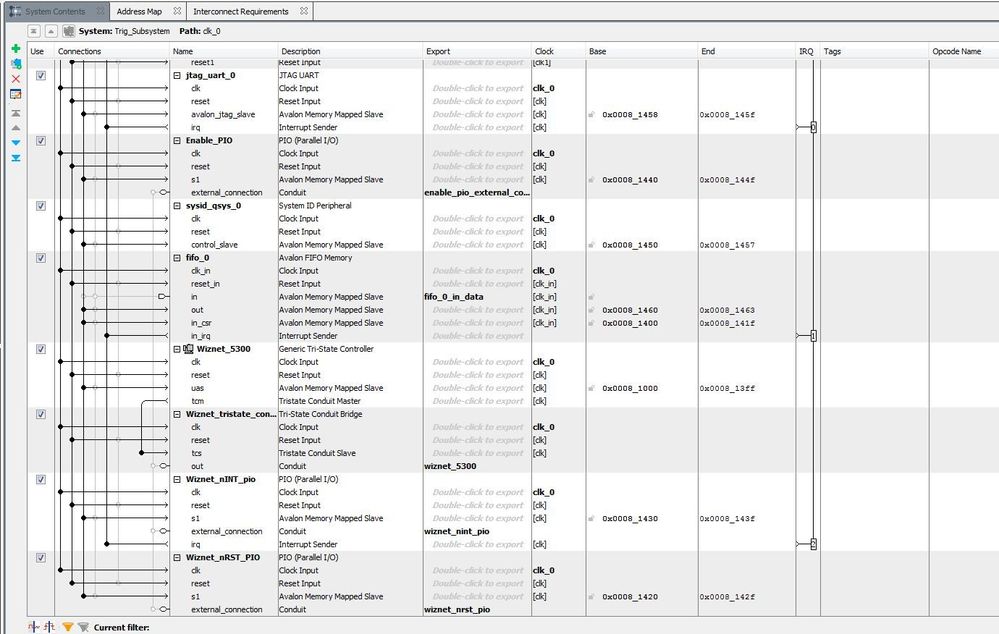

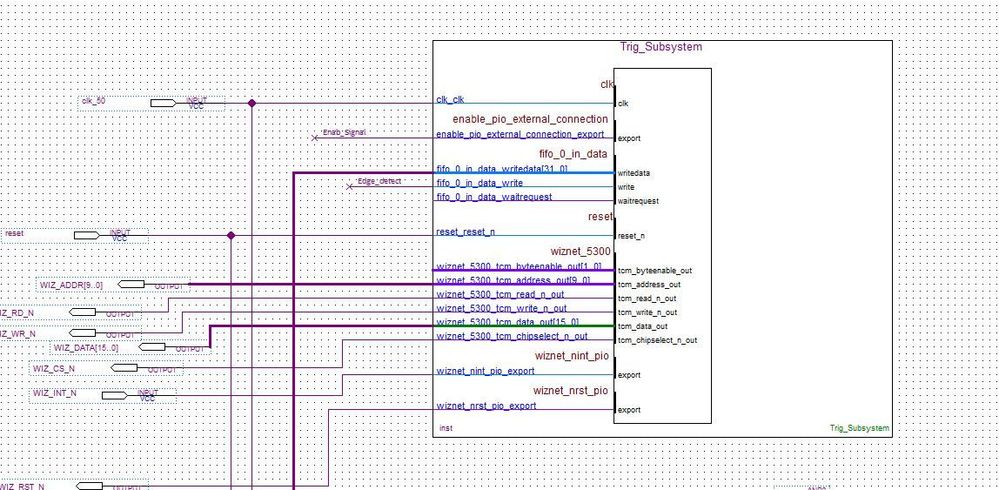

    I have attached Qsys design and Quartus design in this post.

    Please anyone suggest me whether my design flow is right ?
