how to capture data to file

Target Device : Max10 (10M50SAE144I7N)

Sampling Clock : 40Mhz
Required period : 5ms or over

i tried ram size maximum 128k @ 3ms under

so is there any way how to capture data over 1ms
  • sstrell's avatar
    sstrell
    3 years ago

    No. To capture more data in the existing buffer, use data qualification to store only the relevant samples. For example, if signals don't transition for a number of clock cycles, there's no need to keep all of those data samples. Use data qualification as essentially a write enable to the buffer.

5 Replies

  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    I don't quite understand the issue. May I know what is the problem you are facing?


    For best data acquisition, specify a global, non-gated clock that is synchronous to the signals under test.

    Refer to the Timing Analysis section of the Compilation Report for the maximum frequency of the logic analyzer clock.

    https://www.intel.com/content/www/us/en/docs/programmable/683819/22-1/specifying-the-clock-sample-depth-and.html


    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 9/10 survey.


    • jjang's avatar
      jjang
      Icon for New Contributor rankNew Contributor
      3 years ago

      i wanna Capture Data for 10ms (@ posedge 40Mhz Clock)

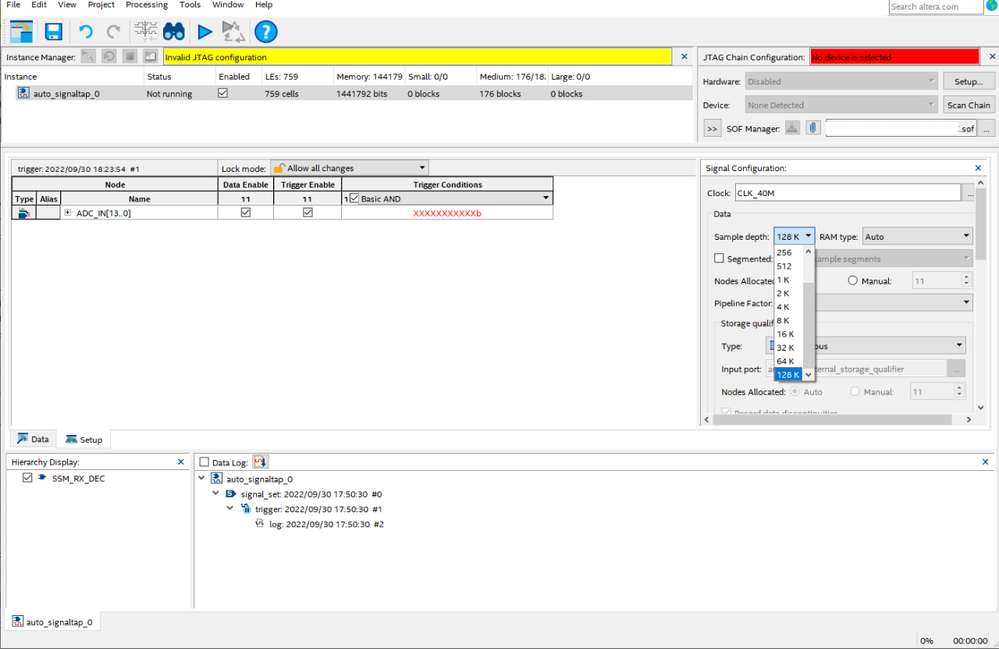

      but Signal Tap Sample depth maximum Setting is 128K.

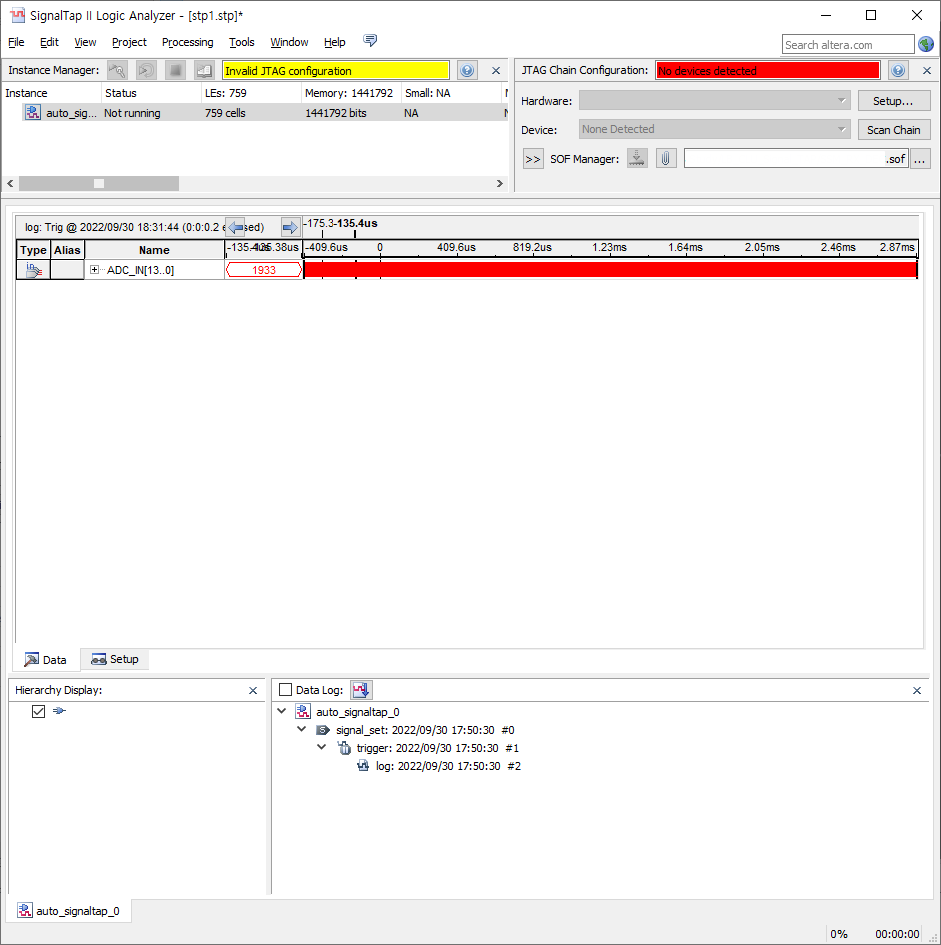

      at that time data length ≒ 2.87ms (≒ 3.28ms).

      i wanna capture more long... is there any way capture depth more longer?

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    No. To capture more data in the existing buffer, use data qualification to store only the relevant samples. For example, if signals don't transition for a number of clock cycles, there's no need to keep all of those data samples. Use data qualification as essentially a write enable to the buffer.

  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Do you have the answer to your question? Do you need further help in regards to this case?


  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Thanks for acknowledge the solution provided.
