Help noob | matrix decoder ( synthesize a linear decoder as a decoder of columns and rows )

I have a problem with my project ( Signal "NAME" drives an input pin ) and i can't solve it :c. And 1 more question about my project, after i do something ( change lines or buses ) i compile without errors but my decoder matrix dosent ( Synthesize a linear decoder as a decoder of columns and rows ) work ( in messages output "inst# not used" )

Thanks in advance who will try to help :з

4 Replies

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    That's because you are using the same names for the X signals. The input and output signal names should be different, whenever a signal is input to a comb logic/register etc. the output signal is effectively different from the input signal.

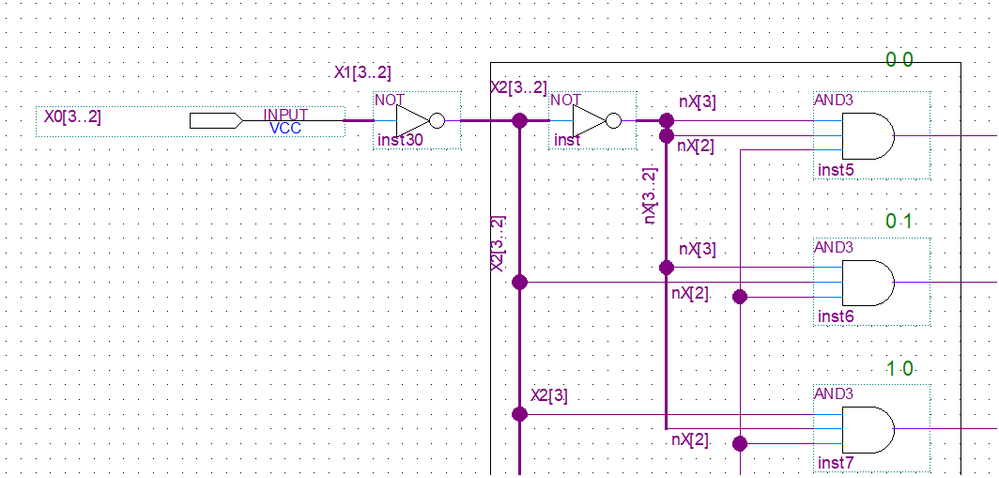

    You should put different names for each signals like below and you won't see the error:

    Let me know if you still see problems with your decoder matrix after making the above changes.


    Regards,

    Nurina


  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Re-uploaded screenshot.

    Regards,

    Nurina

    • DonCajone's avatar
      DonCajone
      Icon for New Contributor rankNew Contributor
      3 years ago

      Yeah, problem was in name of X, after NOT, i couldn't compile that because it had a input name of X :З

      Thx very much
