Failure for initialization ROM memory by using $readmemh task

Hi,

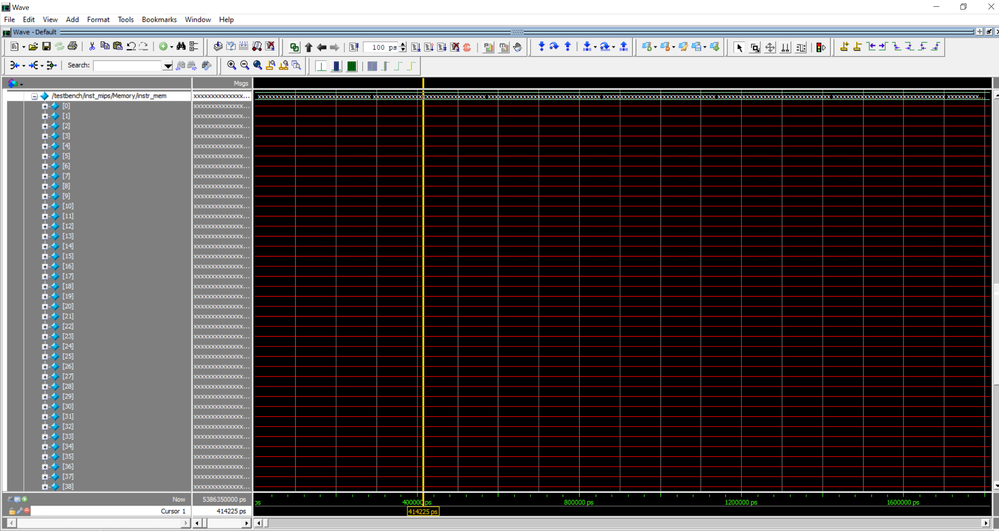

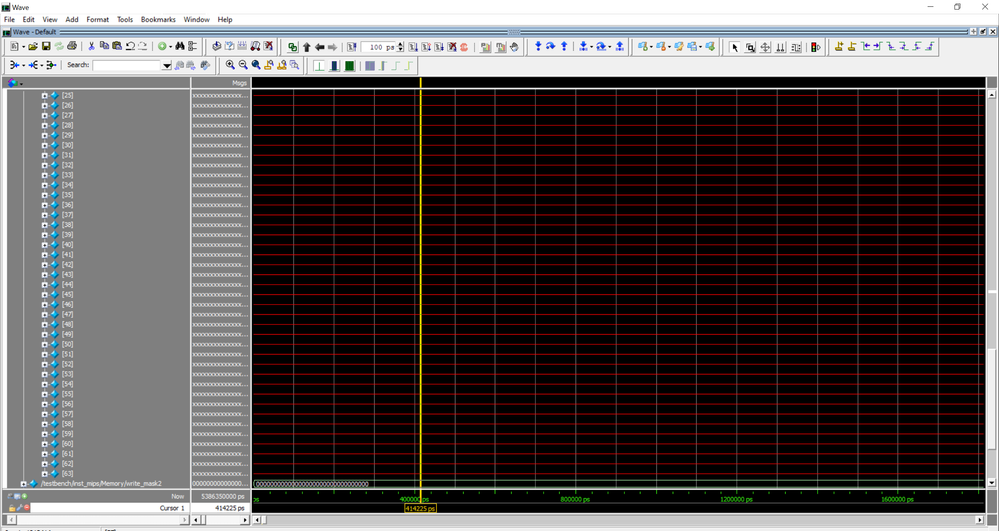

I initialized my ROM memory (instr_mem) by using the $readmemh task. The ROM was successfully complied and simulated, but the waveform show 32'hxxxxxxxx in instr_mem. It seems the 'instr_mem' didn't get the value from mem_instruction.txt file.

module mips_mem(addr1,data_in1,data_out1,we1,
		addr2,data_in2,data_out2,we2,
		rst_b,clk);

   // Boundaries and lengths of each segment
   // Note that '_top' addresses off by one; the actual top is one less
   //      than the values below.
   // '_w' values are word addresses

   input         rst_b;
   input         clk;

   // Inputs and ouptuts: Port 1
   input [5:0]  addr1;         // Memory address
   input [31:0]  data_in1;      // Memory write data
   output [31:0] data_out1;     // Memory read data
   reg [31:0] 	 data_out1;
   input [0:3] 	 we1;           // Write enable (active high; 1 bit per byte)


   // Inputs and outputs: Port 2
   input [5:0]  addr2;         // Memory address
   input [31:0]  data_in2;      // Memory write data
   output [31:0] data_out2;     // Memory read data
   reg [31:0] 	 data_out2;
   input [0:3]	 we2;           // Write enable (active high; 1 bit per byte)
   o

   // Memory segments
   reg [31:0] 	 data_mem[0:63];
   reg [31:0] 	 instr_mem[0:63];

   // Verilog implementation stuff
   integer 	 i;
   wire [31:0] write_mask1 = {we1[3], we1[3], we1[3], we1[3],
			      we1[3], we1[3], we1[3], we1[3],
			      we1[2], we1[2], we1[2], we1[2],
			      we1[2], we1[2], we1[2], we1[2],
			      we1[1], we1[1], we1[1], we1[1],
			      we1[1], we1[1], we1[1], we1[1],
			      we1[0], we1[0], we1[0], we1[0],
			      we1[0], we1[0], we1[0], we1[0]};


   // Handle Port 1 Read
   initial
	begin
		$readmemh("mem_instruction.txt", instr_mem);
	end
   always @(posedge clk or negedge rst_b) begin
	    if(rst_b==1'b0) begin
		     data_out1 <= 32'hxxxxxxxx;
		 end
		 else begin
		     data_out1 <=instr_mem[addr1];
		 end
	end


endmodule

12 Replies

  • ak6dn's avatar
    ak6dn
    Icon for Regular Contributor rankRegular Contributor

    You need to provide a lot more context.

    What version of Quartus?

    What simulator and version?

    Show the contents (at least some lines, not all) of your memory init file.

    In your waveform display, can you add other signals like addr1[5:0]?

    BTW you can collapse the data bit display, no need to show individual bits.

    • Kun_Digital_Design's avatar
      Kun_Digital_Design
      Icon for New Contributor rankNew Contributor

      Quartus Prime # Version 20.1.1

      mem_Instruction.txt

      2402000a
      24080005
      2509012c
      240a01f4
      254b0022
      256b002d
      0000000c
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000
      00000000

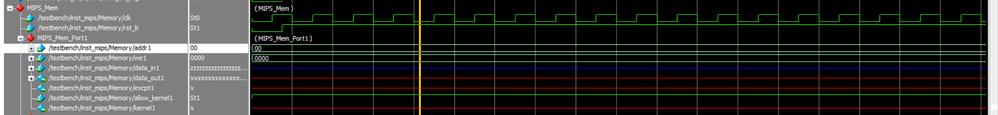

      The screenshot of waveform of addr1[5:0] signal

  • Hi,

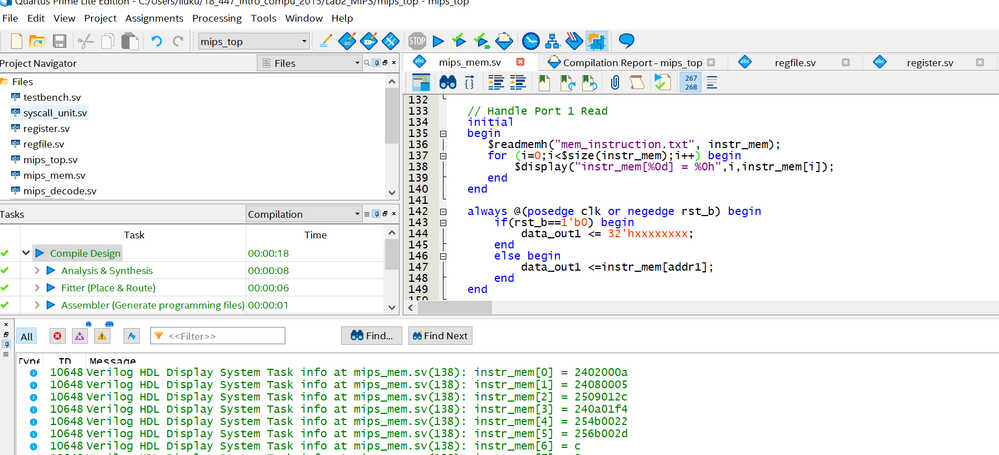

    I printed out the content of mem_instr by using $display. The mem_instruction.txt seems successfully included in the design.

  • What version of Quartus? Quartus Prime # Version 20.1.1

    Show the contents (at least some lines, not all) of your memory init file.

    2402000a
    24080005
    2509012c
    240a01f4
    254b0022
    256b002d
    0000000c
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000
    00000000

    In your waveform display, can you add other signals like addr1[5:0]?

  • Could you share the design .qar files and testbench so I can try to duplicate the issue from my side?


  • Hi,

    The mips_mem is the part of the MIPS processor design. The testbench was used to test hold processor,

    // Top module for the MIPS processor core
    // NOT synthesizable Verilog!
    `timescale 1ns/100ps

    module testbench;

       reg [31:0] i;
       reg [29:0] addr;
       reg 	       rst_b;
       wire halted;

       //parameter
       parameter start = 0, halfPeriod = 50;
       reg 	     clk;
       // The clock
       initial
         clk = start;

       always
         #halfPeriod clk = ~clk;

       // The mips_top core
       mips_top inst_mips(.clk(clk), .rst_b(rst_b), .halted(halted));

       initial
         begin
    	rst_b = 0;
    	#75;
    	rst_b <= 1;
         end

       always @(halted)
         begin
    	#0;
    	if(halted === 1'b1)
    	  $finish;
         end


    endmodule

    Hi, I attached the design .qar file to this post.

  • The $readmemh does work with Quartus. I suspecting design coding style.

    Could you try to integrate the Quartus ROM template in your design?

    Right click on any design file -> Insert template -> Verilog/VHDL -> RAMs and ROMs -> Dual Port ROM.


    • Kun_Digital_Design's avatar
      Kun_Digital_Design
      Icon for New Contributor rankNew Contributor

      Hi,

      I have integrated a Quartus dual port ram template in my design. It still doesn't work. I used the RTL simulation to generate the waveform. The waveform of ram instantiation still shows 32'bxxxxxxxxxxxxxxxx.

      I attached the design .qar file to this post.

  • As we do not receive any response from you on the previous question/reply/answer that we have provided. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.

    Thank you.


    Best Regards,

    Richard Tan


    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 9/10 survey.
