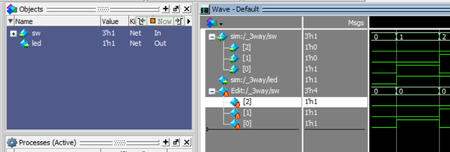

Error in Timing Simulation Display

If the topic is too complicated, you may start with University Self-Guided Lab: Introduction to Static Timing Analysis of Digital Circuit and Understanding Timing Analysis in FPGAs.

Then slowly move forward with other in-depth courses like.

1. Intel® Quartus® Prime Pro Software Timing Analysis – Part 1: Timing Analyzer

2. Intel® Quartus® Prime Pro Software Timing Analysis – Part 2: SDC Collections

3. Intel® Quartus® Prime Pro Software Timing Analysis – Part 3: Clock Constraints

4. Intel® Quartus® Prime Pro Software Timing Analysis – Part 4: I/O Interfaces

5. Intel® Quartus® Prime Pro Software Timing Analysis – Part 5: Timing Exceptions

I also recommend to attend the instructor-led training. Please note that the training will be based on Quartus Pro.

You can find more courses @ https://learning.intel.com/developer/pages/30/all-intel-developer-training

I saw that an agent have been assigned to your other forum case. You should expect a reply soon.

Best Regards,

Richard Tan
