New ContributorI'm trying to mess around with the Cyclone V DSP and have fun triggering different settings that appear in chip planner.
How in the world do I trigger ay_use_scan_in?
Can someone provide a design where ay_use_scan_in is set to true?
What is a scan_in even used for?
Thank you.
Super ContributorHi Andrue,
Can you provide any snapshot of ay_use_scan_in in chip planner for clearer view?
Thanks,
Regards
Occasional ContributorIn order to infer the scan-in port for AY, you need to have associated code that points Quartus in the proper direction for synth + place and route. Options include (Quartus 18.1 standard):

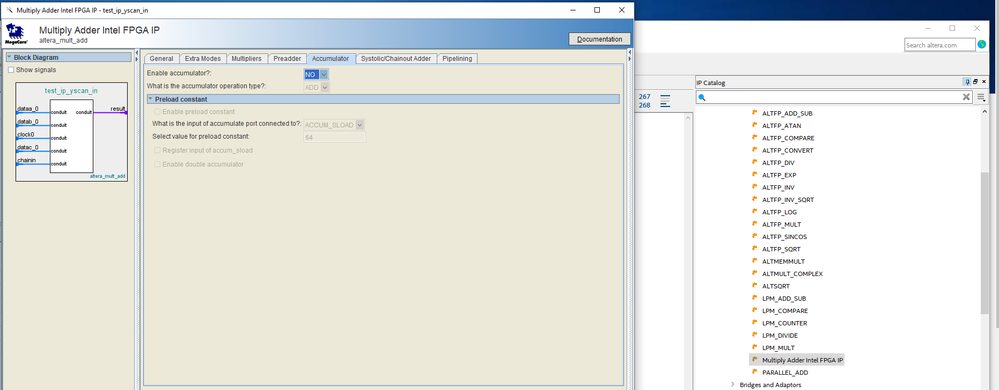

- Quartus IP (i.e. via IP Catalog or Qsys/Platform Designer) - Multiplier Adder Intel FPGA IP

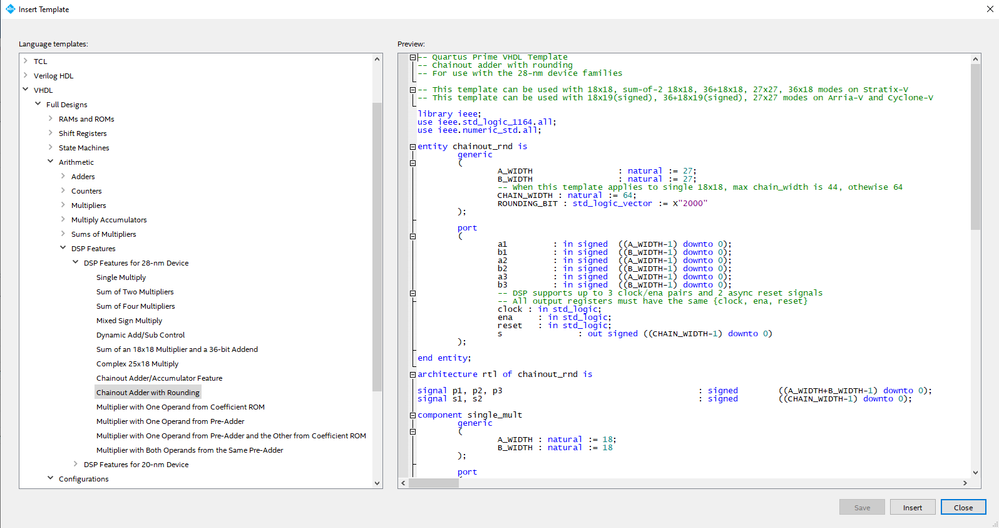

- Inference via RTL templates (see screenshot below)
- Using high-level design tool like DSP Builder
Depends on what are you looking to do with that input port. If there isn't an obvious choice from different tabs/selections in the Quartus IP, it should be able to be done by using the various RTL templates in your source VHDL/Verilog.
The templates are meant to infer a base functionality - can be modified for your specific case, but be aware that changes need to align with the functionality found in the user guide (see link below).
I would recommend first using the Quartus IP GUI - this keeps the scope of the changes to the inferred RTL to valid use-cases.
https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/hb/cyclone-v/cv_5v2.pdf
Hopefully this helps!
Jeff

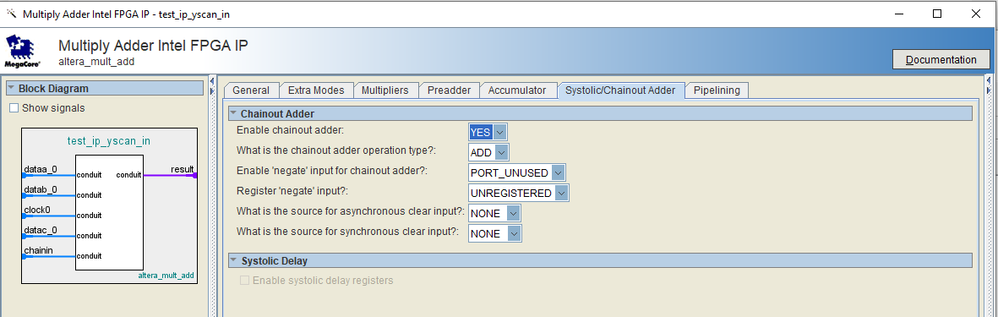

Occasional ContributorThis screenshot is more applicable for using the chain adder. When you select "YES" for chainout adder, then the "chainin" port is activated in the block diagram.
Super ContributorHi Andrue,
Any updates?
New ContributorSorry. I've had some issues with my Intel account.
Yeah. I can use the chainadder fine and the chainin port. But, the primitive has a port ay_scan_in, that I can't figure out. I'm not quite sure what it does or how to use it. The only references I see talk about boundary scanning. Is that what the port is used for? Or, is it just left over from the Stratix devices?
