can't programming a Cyclone V E Development kit

Hey,

I unsuccessfully tried to program a Cyclone V E Development kit to the CFI flash 512Mb on the kit.

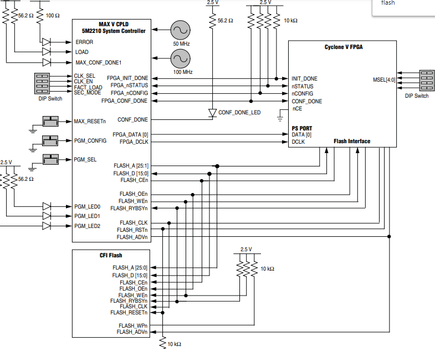

I converted the sof file (that I successfully download to the kit) to a pof file via the Convert Programming File in Quartus application. I converted it to 1-bit Passive serial, according the next figure that you can fined in page number 22 in the device's datasheet:

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/manual/rm_cve_fpga_dev_board.pdf

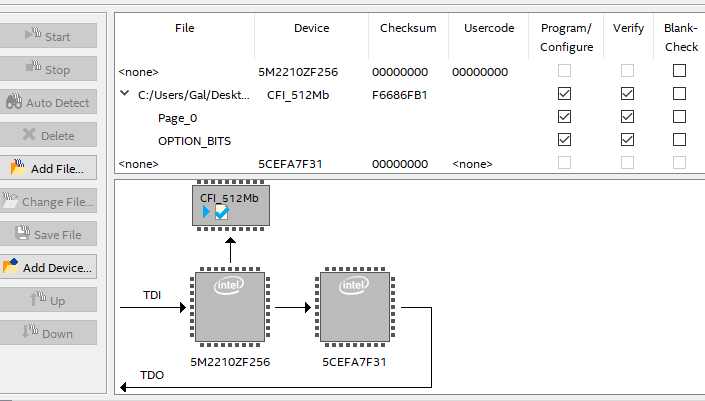

This is the JTAG chain that I constructed in Quartus programmer:

When I tried to burn the pod file into the flash, I got the message that I don't have the PFL file that required (in data sheet it mentioned that the Parallel Flash Loader is included).

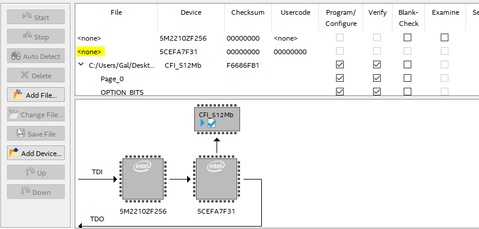

Moreover, I tried the JTAG chain with the FPGA master over the Flash device. In this scheme I expected to get the PFL file automaticlly but it didn't upload and I got the same error when I tried to burn the pof file

Can you help me?

Thank you

11 Replies

    • Gyud0's avatar
      Gyud0
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      hey John,

      I can't program the FPGA kit via the Quartus programmer?

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    Could you confirm if you have configure the Max or FPGA with PFL design? If yes, may I know what is the error message that you are observing?


    Have you try the development kit user guide to see if you are able to update the flash?


    • Gyud0's avatar
      Gyud0
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      I tried to configure it as I showed in the pictures above. I got the errors:

      "Flash Loader IP not loaded on device 1"

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    Have you program the CPLD/FPGA 1st with PFL before programming the flash? Have you tried the step provide in user guide?


    • Gyud0's avatar
      Gyud0
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Do I need to add the PFL IP to the design?

      because page 21 mentioned that the development board implements the Altera PFL mega function.

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    If you are using your own design then you will need to include PFL. If you are using factory design, then it should include the PFL into the bitsream


    • Gyud0's avatar
      Gyud0
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      ok.

      So I did the folowwing steps:

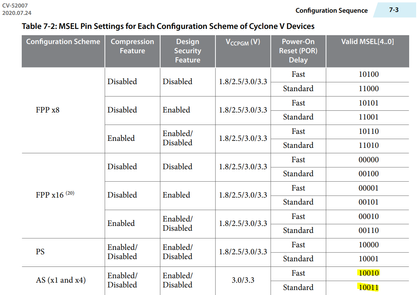

      1) I reviewed the MSEL pin settings for Cyclone V devices .

      https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/hb/cyclone-v/cv_5v2.pdf

      you can see that in page 244. I'm interesting in Active Serial X4 configuration so I configured the SW1 on the Evaluation kit. I tried the both remarked option bits

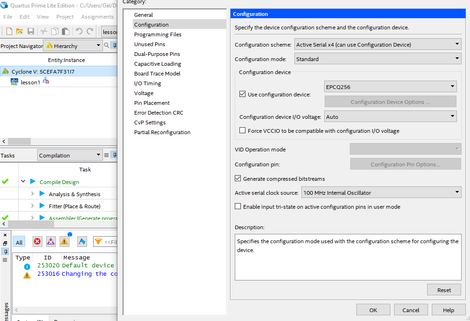

      2) In Quartus project, In configuration (belongs to device and pin options), I chose:

      Configuration scheme: Active serial X4

      Configuration mode: Standard

      Use configuration device:EPCQ256

      Configuration device I/O voltage: Auto

      Active serial clock source:100MHz internal oscillator

      3) I used the Convert Programming file window via Quartus and chose:

      programming file type: .jic

      Configuration device: EPCQ256

      Model: Active serial x4

      Flash Loader-> 5CEFA7

      SOF Data-> project_file.sof

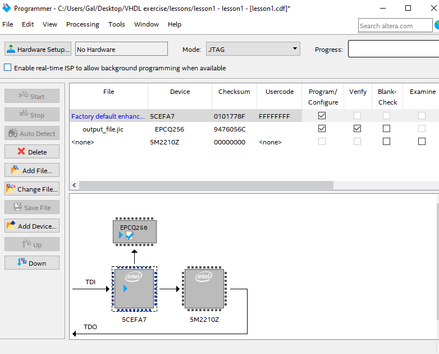

      4)Via the Programmer windows I constructed the following chain:

      And I pressed the Start button

      I got the messages:

      "209060- Started programmer operation at <Local_Time>"

      "209016 Configuring device index 1"

      "209017- Device 1 contains JTAG ID code 0x02B130D0"

      "209007 Configuration succeed --1 device(s) configured"

      "209025 can't recognized silicon ID for device 1. A device's silicon ID is different from its JTAG IS. verify that all cables are securely connected, select a different device, or check the power on the target system. Make sure the device pins are connected and configured correctly"

      "209012 Operation failed"

      "209061 Ended programmer operation at <Local_Time> "

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    Could you try to performed Auto-detect after the failure? The reason is that I suspect that the flash device is not EPCQ256.


    When you are generating jic file, could you click in the "Advanced..." button to see if the "Disable EPCS/EPCQ ID check" is enabled?


    • Gyud0's avatar
      Gyud0
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      1)When I'm generating the JIC file, the "Disable EPCS/EPCQ ID check" is enabled.

      2)I did an Auto-detect after the failure and I got the message "The auto-detected device chain doesn't match the programming device list....." . So do I need to try it on another EPCQ device?

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    Could you provide the screenshot of the new JTAG chain device list?
