Block Diagram Display Issue

Hi, I am an engineering student running the Quartus Prime Lite edition for work in my digital logic design class. I'm enjoying the program on my desktop but I'm having some display issues on my laptop that I haven't been able to resolve. For some reason when I'm working on block diagrams the images and fonts are not scaling properly, leaving everything an unreadable mess. I've attached a picture for reference. I've spent a great deal of time searching online and through settings menus and changing font sizes to no avail. Any advice at this point would be greatly appreciated!

System details:

Windows 10

Quartus Prime 17.0 lite edition

Intel Integrated Graphics (no separate card)

Screen Resolution 2560 X 1440

14" Screen

12 Replies

  • CHan0's avatar
    CHan0
    Icon for New Contributor rankNew Contributor

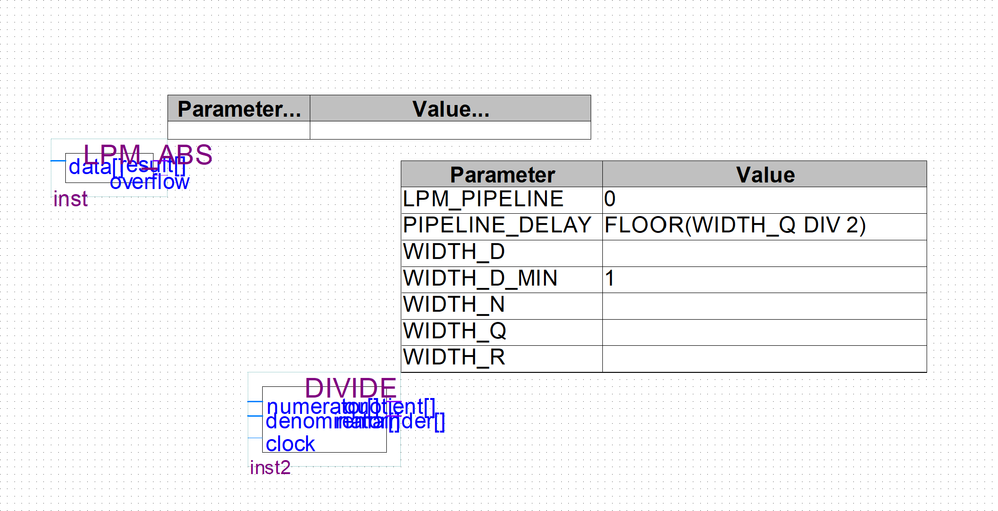

    I followed every step but still can't make the block diagram look normal (or readable). Please see the attached pic.

    Can any one help me to solve this issue?

    (Hello Intel, 4k monitor is not a new technology, not like 10nm/7nm chip, so please try to update and solve this mess....)
