Adding a PIO for leds to my qsys and could not download and execute the program

Hello,

I am building a qsys SOC, I am using an extern SDRAM connected to my NIOS;

the project works and I could print anything and debug the project,

When I added a PIO connected to the SOC the project could not be downloaded to the hardware.

Of course, I am regenerating the system when I make these changes but the debugging is not working.

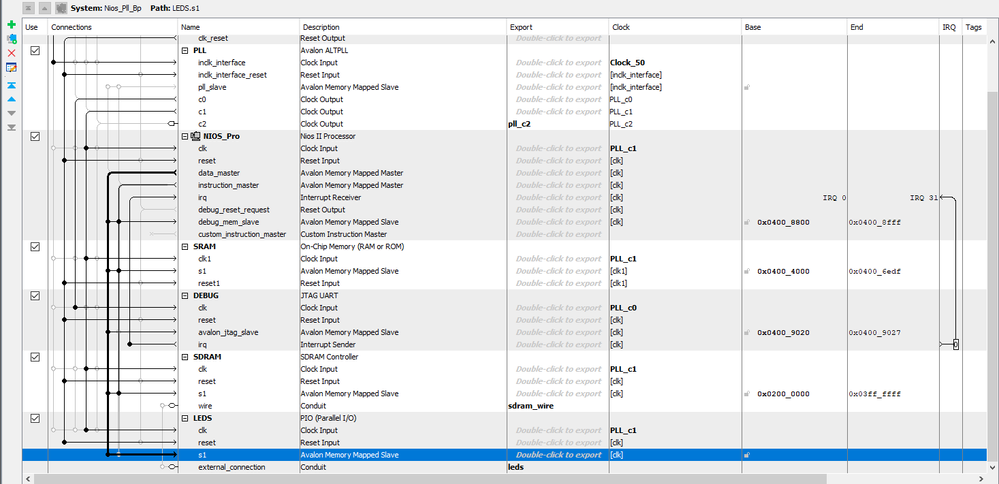

here is a capture of my soc:

6 Replies

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi homeinit

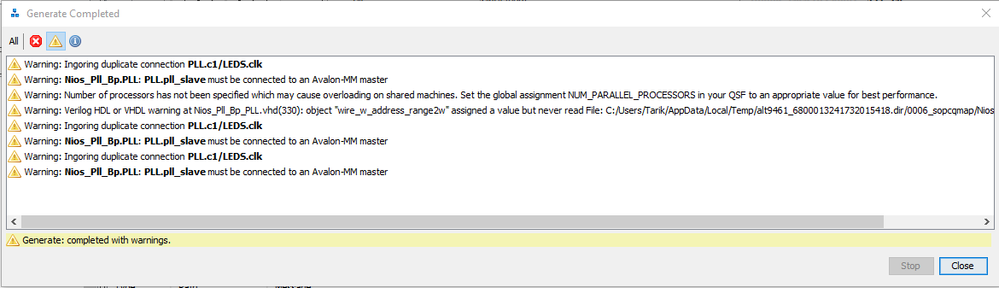

    When compiling the project did you face any error or warning?

    From the picture i see that you have disabled the PIO ip, is this intended?


    Regards

    Jingyang, Teh


    • homeinit's avatar
      homeinit
      Icon for New Contributor rankNew Contributor
      2 years ago

      He Jingyang,

      I disabled it to test the system and make sure that the system is working without the PIO.

      I didn't see any warning or error due to the compilation.

      here is the system If I enable it:

      Regards,

  • homeinit's avatar
    homeinit
    Icon for New Contributor rankNew Contributor
    2 years ago

    I managed to execute the program on the SDRAM memory by connecting the pll_slave to the data master but when I execute the code it seems the result is not what the C code does.

    I could not understand why instead of alt_putstr("Hello from Nios II!\n"); it printed, "Hehho brom Jios II!"

    It looks like the rest of the program is okay but I am not sure why this happening! I changed the size of the JTAG buffer size before but I don't know if I have to change anything else if I pass from 64 bytes to 128 bytes. It could be related to this modification I did and still has a side effect.

    I'm a bit suspicious about running the code in the SDRAM, I'm not sure about the timing parameters I set in the SDRAM IP controller ...

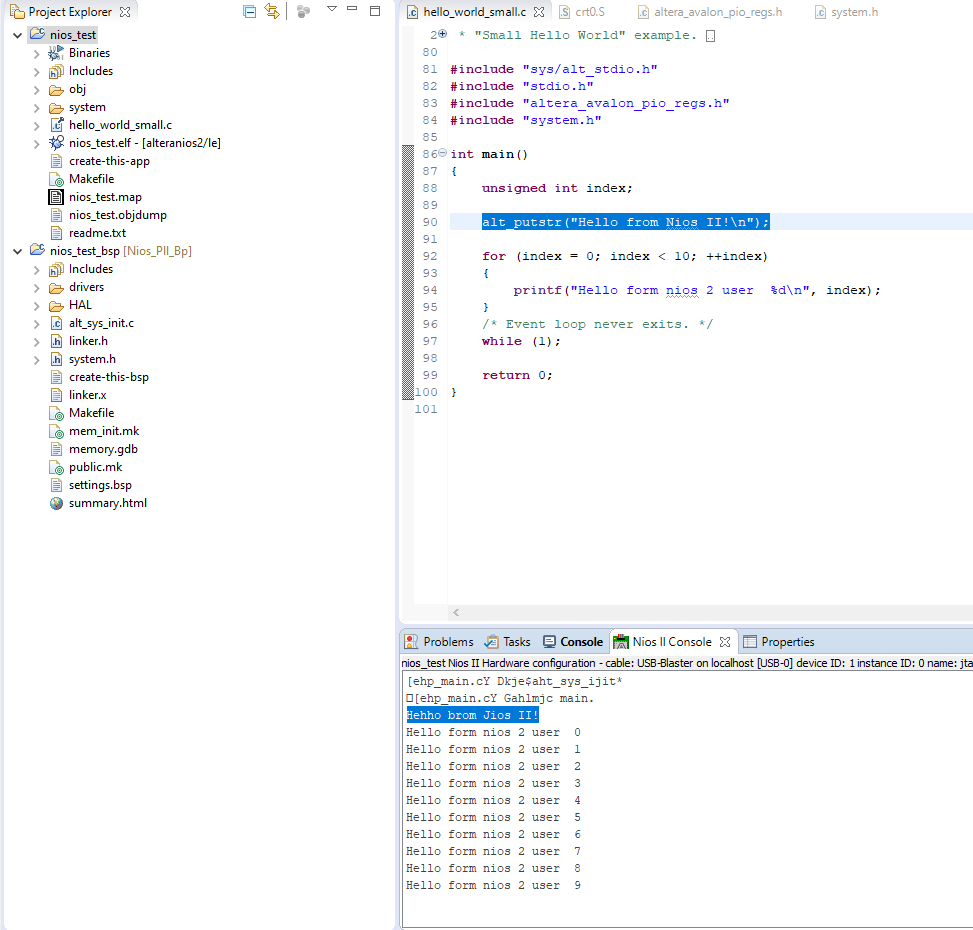

    Here is a picture:

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi


    Apologies for the late reply.

    Did you happen to enable the small newlib option in the NIOS BSP?

    If yes could you disable it.


    Regards

    JIngyang, Teh


  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi


    Since there are no feedback for this thread, I shall set this thread to close pending. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.


    If you happened to close this thread you might receive a survey. If you think you would rank your support experience less than 10 out of 10, please allow me to correct it before closing or if the problem can’t be corrected, please let me know the cause so that I may improve your future service experience.


    Regards

    Jingyang, Teh
