Why does Fitter show "Dedicated Pin" as "Reference Clock Source by" for downstream PLL in cascade?

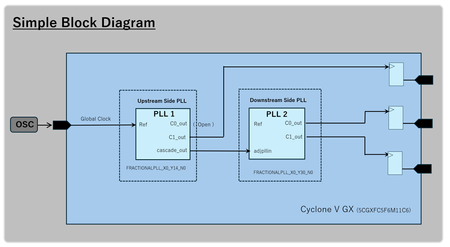

  Hi everyone, I created a design that connects two PLLs in a simple cascaded configuration.   However, I noticed something that seems inconsistent in the Fitter report:  In the...
Other Ips
  • ShengN_altera's avatar
    ShengN_altera
    1 hour ago

    Hi,

    Yes, this is just reporting limitation and will not cause functional impact.

    Please treat "Reference Clock Sourced by" as "Don't Care" for the PLL2 ( downstream side PLL) and rely on the "PLL Refclk Select" section.

ShengN_altera's avatar
ShengN_altera
Icon for Super Contributor rankSuper Contributor
1 hour ago

Hi,

Yes, this is just reporting limitation and will not cause functional impact.

Please treat "Reference Clock Sourced by" as "Don't Care" for the PLL2 ( downstream side PLL) and rely on the "PLL Refclk Select" section.
