Transceiver Native PHY Intel Arria 10/Cyclone 10 FPGA IP

Hi- "Transceiver Native PHY Intel Arria 10/Cyclone 10 FPGA IP" is an IP that receives 40-bit parallel input and outputs high-speed serial output I read 40 bits from ROM and write it in paralle...
sung_chul's avatar
sung_chul
Icon for New Contributor rankNew Contributor
3 years ago

Hi,

This subject is my mistake!

Dirrential probe contact error!

Sorry! K**bleep**ij Goel

But ,

We have another problem!
It comes out low voltage at 101010 data at 5GHz. (This voltage Swing 30)

The next one, 11001100, comes out right.

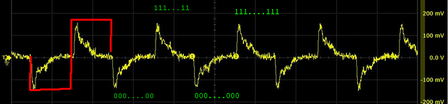

As shown in the picture below.


But at 2GHz, it comes out normally.
Why does it only come out like this at high frequencies?

Thanks!
