R-Tile Avalon® Streaming Intel® FPGA IP for PCI Express Testbench

Hello, our research team is working on PCIe controller with Agilex-7 M Series.

We are using R-Tile Avalon® Streaming Intel® FPGA IP for PCI Express.

According to Using the Avery BFM for R-Tile PCI Express Gen5 Simulations in R-Tile Avalon® Streaming Intel® FPGA IP for PCI Express User Guide,

(https://www.intel.com/content/www/us/en/docs/programmable/683501/25-1-1/overview-59246.html)

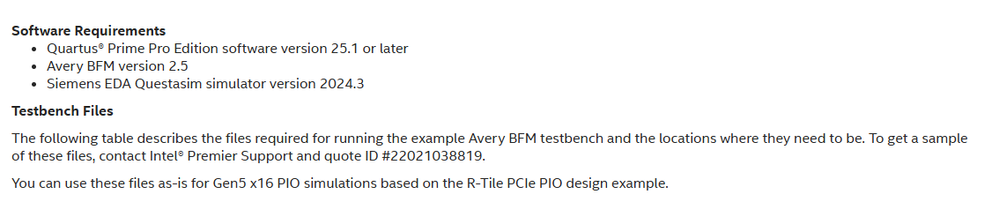

Testbench files for Avery BFM is supported. (Figure below, link above)

Could you provide us testbench sample for Avery simulation?

Pcie

5 Replies

  • Anonymous's avatar
    Anonymous
    Not applicable
    10 months ago

    Thank you for your question. Anonymous​ will go through your enquiry and get back to you soon.

  • Anonymous's avatar
    Anonymous
    Not applicable
    10 months ago

    Hi @grandplano,

    Could you please reach out to us through Intel Premier Support and quote ID #22021038819 to request the Avery BFM testbench files?

    Thanks.
    Best Regards,
    Ven

      • VenT_Altera's avatar
        VenT_Altera
        Icon for Frequent Contributor rankFrequent Contributor
        10 months ago

        Hi @grandplano,

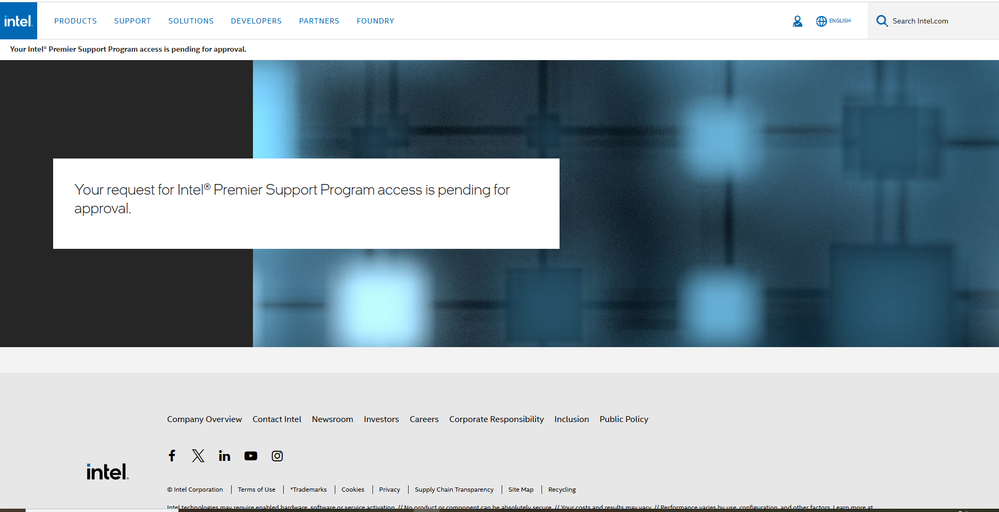

        My apologies, but I am unable to assist with the sign-in issues.

        Only accounts with a dedicated account owner are eligible for Intel Premier Support at this time. Please visit the Sign-In Support page for assistance with logging issues into Intel Premier Support. Please refer to the following link: https://www.intel.com/content/www/us/en/support/articles/000092496/programs.html



        Thanks.
        Best Regards,
        Ven
