PCIe and Scaler II IPs

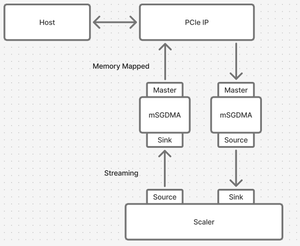

Hi, I’m working on a project that transfers an image via PCIe to a Scaler II IP, processes it, and then sends it back to the host computer. My initial plan was to connect the PCIe IP to two mSGDMA ...
Pcie
VenT_Altera's avatar
VenT_Altera
Icon for Frequent Contributor rankFrequent Contributor
1 year ago

Hi Danield,


Thanks for reaching out.


Allow me some time to investigate your issue. I shall come back to you with the findings.

As you are using Agilex 7 I-Series, are you using F-Tile or R-Tile? Do you need to use the MCDMA IP, or can you switch to the F/R-Tile AVST IP?


Thanks.

Best Regards,

Ven


  • danield17's avatar
    danield17
    Icon for New Contributor rankNew Contributor
    1 year ago

    Hi Ven,

    I’ve already found a solution.

    To answer your questions:

    • I’m using the R-Tile.
    • I didn’t specifically need the MCDMA. my goal was to find a solution that works regardless of the device or PCIe IP being used.
    • I preferred sticking with a PCIe IP that supports a memory-mapped interface, as I find it more flexible and convenient.

    The solution I settled on was transferring the image to an EMIF and connecting two Frame Buffer II IPs to it. one configured as a Frame Reader to send the image to the video IPs, and the other as a Frame Writer to return the processed image from the video IPs back to the EMIF.

    Best regards,
    Daniel
