Question

Hi,

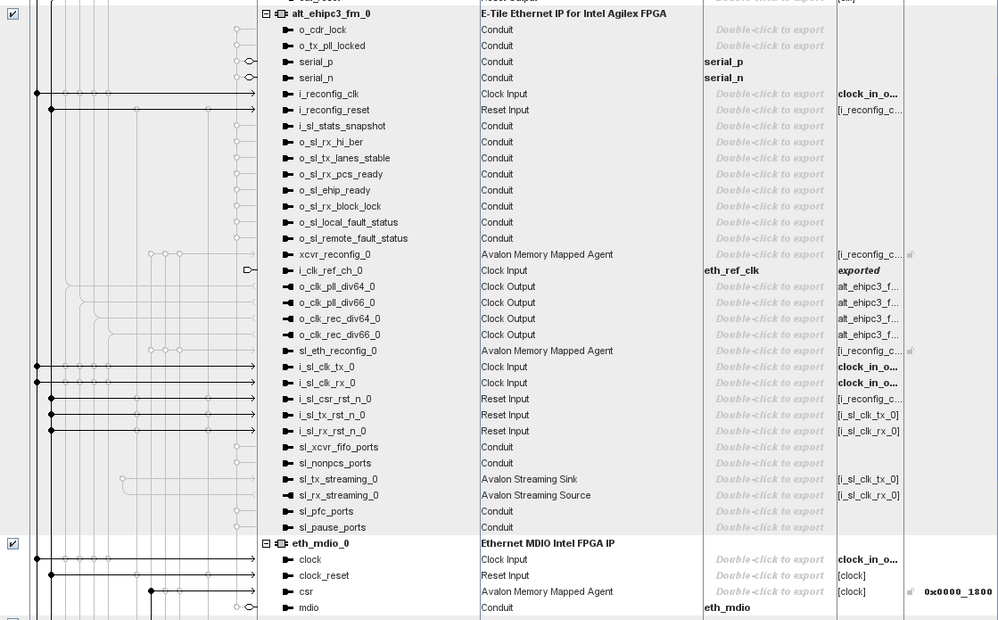

I am using E-tile Ethernet IP for Agilex to configure 10G_Base-T Ethernet PHY. But in that E-Tile Ethernet IP there is no provision for MDIO and MDC pins from IP. So I have used Ethernet MDIO core IP. To Access external PHY MDIO ,MDC pins required . I have given below design for reference. please suggest me any reference example design for external PHY access  by using Ethernet MDIO core IP and ethernet IP individually.

And also, please share any application code example for MDIO and MDC register accessing through eclipse nios processor.
--
Regards,
Sumanth Raju

ziying_intel · Answer

Hi Sumanth Raju,Thanks for submitting the issue. Please do allow me have some time to look into your issue and I will get back to you with findings.Best regards,Zi Ying

ziying_intel · Answer

Hi Sumanth Raju,

Based on my current knowledge, I know that MDIO IP core can be used:

Intel FPGA 10-Gbps Ethernet MAC (support up to 10G)

https://www.intel.com/content/www/us/en/docs/programmable/683426/18-1-18-1/about-ll-ethernet-10g-mac.html

Intel FPGA Triple Speed Ethernet IP Core (support up to 1G)

https://www.intel.com/content/www/us/en/docs/programmable/683402/22-4-21-1-0/about-this-ip.html

Currently we can't provide the reference design example with public due to the confidential of company.

Best regards,
Zi Ying

ziying_intel · Answer

Hi Sumanth Raju,Since I have addressed your question and haven't hear any feedback from you, I am now close the case. If you have any question after the case closed, please do feel free to submit another issue.Best regards,Zi Ying
