Cannot compile FIR II IP in Quartus 19.3

Hi,

I generated a decimator using FIR II IP in Quartus Prime Pro 19.3.

Simulation is OK using Modelsim.

However when I include the FIR II IP in my project and click "Start Analysis & Elaboration" in Quartus 19.3, some error occurs :

Instance "xxxxxxxxxxx|xxxx.hpfircore_core" instantiates undefined entity "xxxxxxxx_rtl_core"

It's a bit like the error in the following page,

https://www.intel.com/content/www/us/en/programmable/support/support-resources/knowledge-base/solutions/spr369493.html

Any suggestions ?

7 Replies

  • CheepinC_altera's avatar
    CheepinC_altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,

    As I understand it, you observe some compilation issue with FIR II IP in Q19.3Pro. For your information, I have created a simple test design with FIR II IP (Decimator) and able to pass the Q19.4Pro compilation. Note that I only have Q19.4Pro installed in my PC.

    Attached is the QAR for your reference.

    Please let me know if there is any concern. Thank you.


    Best regards,
    Chee Pin

    • RDC's avatar
      RDC
      Icon for New Contributor rankNew Contributor
      5 years ago

      Hi, thanks for the following up. The problem remain unsolved.

      Sorry that I should have described my problem more clearly.

      My situation is that my original project has two FIR IPs, one for Low pass filter and one for decimator.

      This project can be synthesized, fit, place & route successfully.

      And the function works fine.

      When I want to add one more decimator to this project, or more FIRs into this project.

      Some error occurs during Analysis and Elaboration.

      Like:

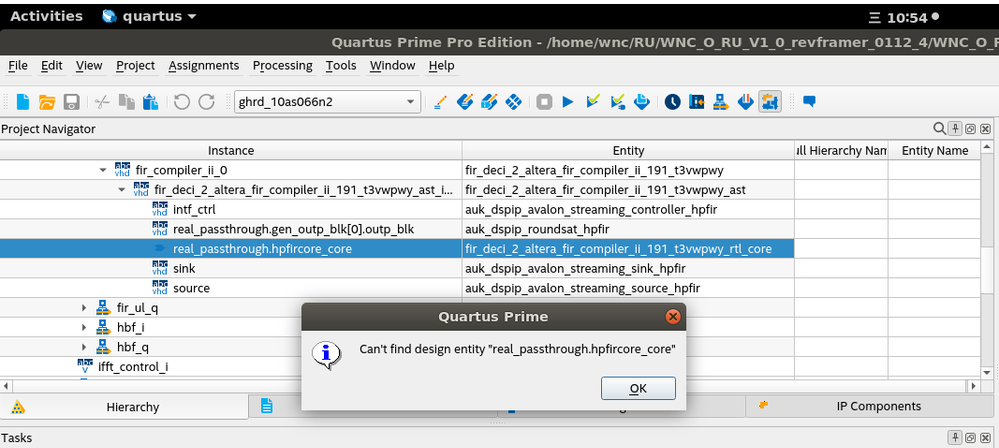

      Instance "dl_data_top|dl_data_path_ant1|dl_rf_intf|fir_ul_q|fir_compiler_ii_0|fir_deci_2_altera_fir_compiler_ii_191_t3vwpwy_ast_inst|real_passthrough.hpfircore_core" instantiates undefined entity "fir_deci_2_altera_fir_compiler_ii_191_t3vwpwy_rtl_core"

      If I click the Hierarchy, then it did show Can't find design entity "real_passthrough.hpfircore_core"

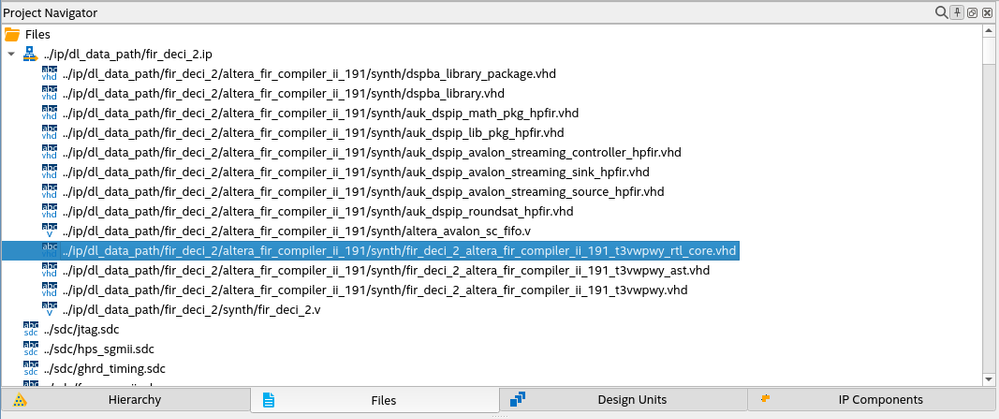

      But when I click the File, the file "fir_deci_2_altera_fir_compiler_ii_191_t3vwpwy_rtl_core.vhd" does exist

      Not sure if this issue related to

      Why Analysis and Synthesis fails when using multiple variation of same DSP IP core

      https://www.intel.com/content/www/us/en/programmable/support/support-resources/knowledge-base/solutions/fb331705.html

      or

      Quartus Compilation Fails in Quartus Prime Pro For Designs with Multiple SerialLite III IP Core Instances

      https://www.intel.com/content/www/us/en/programmable/support/support-resources/knowledge-base/solutions/rd10082012_901.html

      The error message is similar to the multiple SerialLite III IP Core.

      Thanks for answering.

      • RDC's avatar
        RDC
        Icon for New Contributor rankNew Contributor
        5 years ago

        Hi,

        Just offering some additional snapshot for comparison.

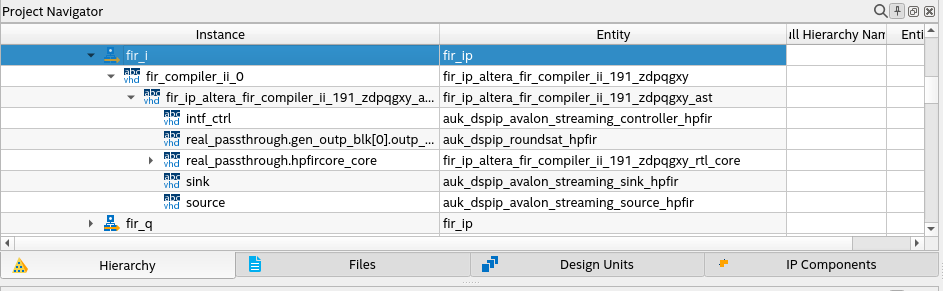

        Here is the FIR IP in the original project which can be synthesised, where the "real_passthrough.hpfircore_core" in this FIR IP is defined.



        When I add new FIR IP, error message occurs as the previous post.

        And the "real_passthrough.hpfircore_core" in the new FIR IP is undefined.


        Not sure if I need additional setting for IPs.

        Thanks.
